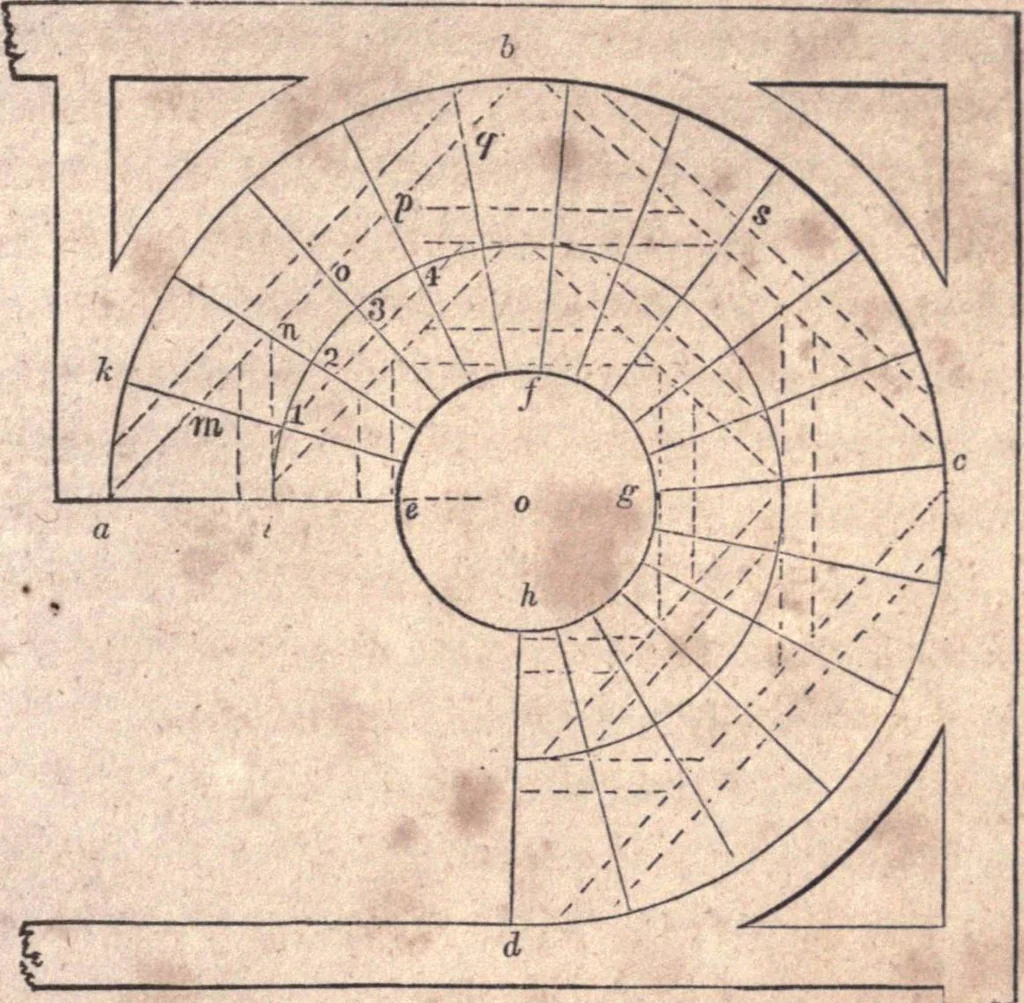

An illustration from The American house-carpenter; a treatise upon architecture, cornices and mouldings, framing, doors, windows, and stairs. Together with the most important principles of practical geometry, 1852, leaf 236 — rs. WINDING STAIRS. 376.—Winding stairs have steps tapering narrower at one endthan at the other. In some stairs, there are steps of parallel widthincorporated with tapering steps ; the former are then called flyerisand the latter winders. 377.— To describe a regular geometrical winding stairs,In… … Fig. 272. a e, is given as the face of the first riser, and the point, j, for thelimit of the last. Make e i equal to 18 inches, and upon o, witho i for radius, describe the arc, ij; obtain the number of risersand of treads required to ascend to the floor at;, according to Art.361, and divide the…
