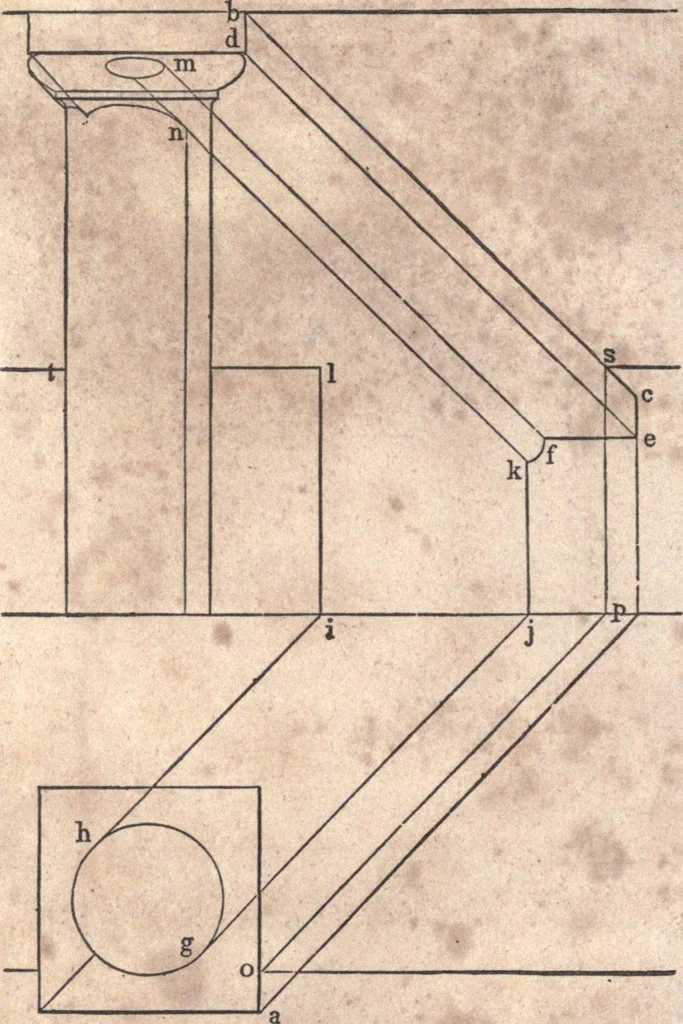

on of thefigure, it will be seen that the same process is applied to each lineof section, and in that way the points, p, r, t, w, v, w, x, as also1, 2, 3, &c., are successively found, and the lines of shadowtraced through them. Fig. 330 is an example of the same capital with all the… … Fig. 331. rays from a and b, (Fig. 331,) and find the point, c, as in theprevious examples; from d, draw the ray, d e, and from e, thehorizontal line, e f; tangical to the curve at g and h, draw therays, g j and h i, and from i and j, erect the perpendiculars, i Iand j k; from m and n, draw the…
