The American house-carpenter; a treatise upon architecture, cornices and mouldings, framing, doors, windows, and stairs. Together with the most important principles of practical geometry (1852)
Hatfield, R. G. (Robert Griffith), 1815-1879 · New York : J. Wiley · leaf 40

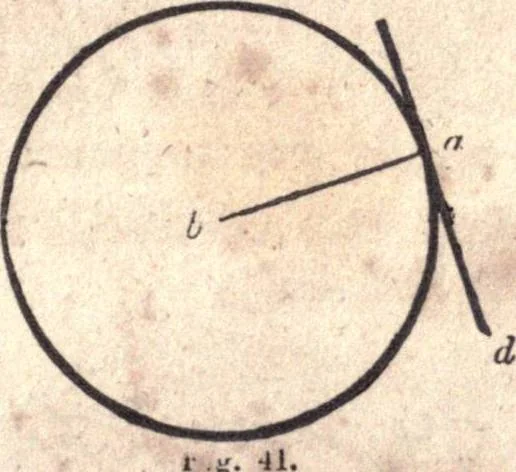

s to a b ; joinc and b ; bisect c b at d—which will be the centre of the circle. If a circle be not too large for the purpose, its centre may veryreadily be ascertained by the help of a carpenters-square, thus :app1 y the corner of the square to any point in the circumference,as at a ; by the edges… … 82.—At a given point in a circle, to draw a tangent thereto.Let a, (Fig. 41,) be the given point, and b the centre of the cir-cle. Join a and b ; through the point, o, and at right angles toa b, draw c d ; c dis the tangent required.
Carpentry · Architecture
