The American house-carpenter; a treatise upon architecture, cornices and mouldings, framing, doors, windows, and stairs. Together with the most important principles of practical geometry (1852)
Hatfield, R. G. (Robert Griffith), 1815-1879 · New York : J. Wiley · leaf 64

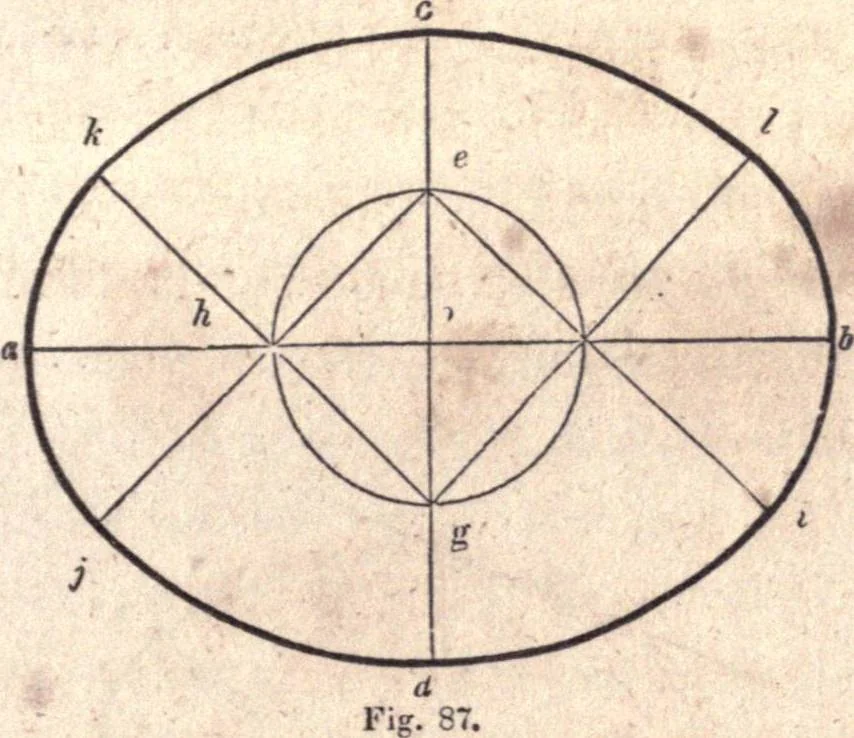

i and I n ; this will complete the figure. When the axes are proportioned to one another as 2 to 3, theextremities, c and d, of the shortest axis, will be the centres fordescribing the arcs, i land m n; and,the intersection of e d withthe transverse axis, will be the centre for describing the arc,… … 121.— To draw an oval in the proportion, seven by nine.Let c c?, (Fig. 87,) be the given conjugate axis. Bisect c d mo,and through o, draw a 6, at right angles to c d ; bisect c o in e ;upon o, with o e for radius, describe the circle, e f g h ; from e,through h and/, draw e j and e i ; also, from…
Carpentry · Architecture
