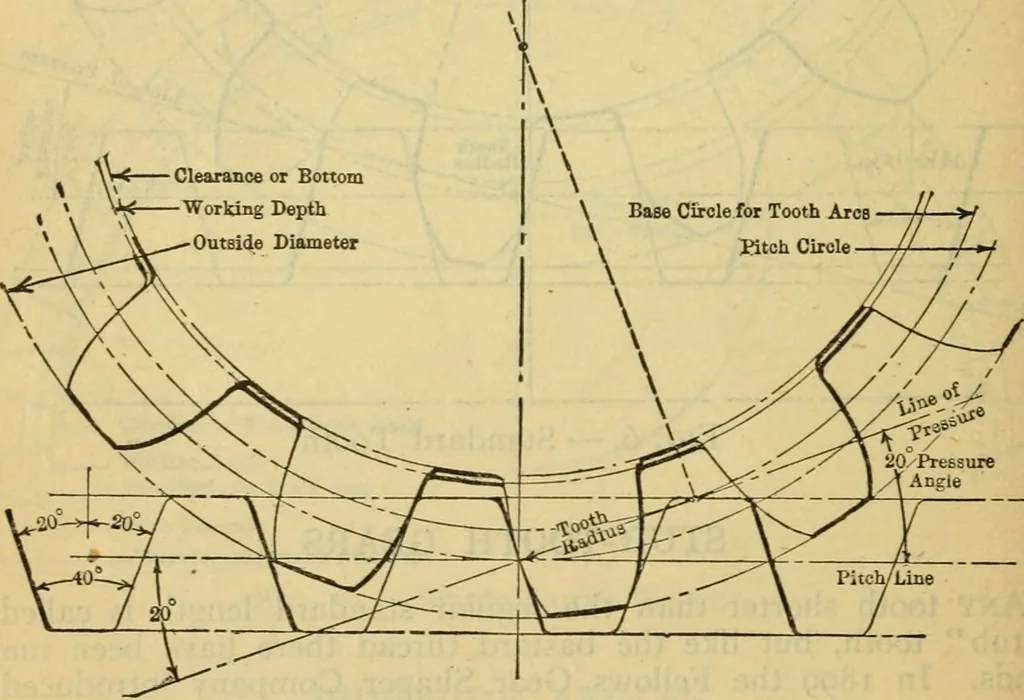

the pitch is 4 it has the depth of a 5-pitch standard toothdivided as shown. The clearance is one-quarter the addendum ordedendum. io8 GEARING Table of Tooth Dimensions of the Fellows Stub-Tooth Gear fl StubTooth Has Depthof Standard Thicknesson Addendum Dedendum andClearance dt Pitch Tooth Pitch… … Fig. 7, — Stubbed Tooth The Nuttall Company also use a 20-degree stub tooth, but have aifixed length or depth in the following proportions. Addendum = .25 X circular pitch instead of .3683. Dedendum = .30 X circular pitch instead of .3683. Working depth = .50 X circular pitch instead of…
