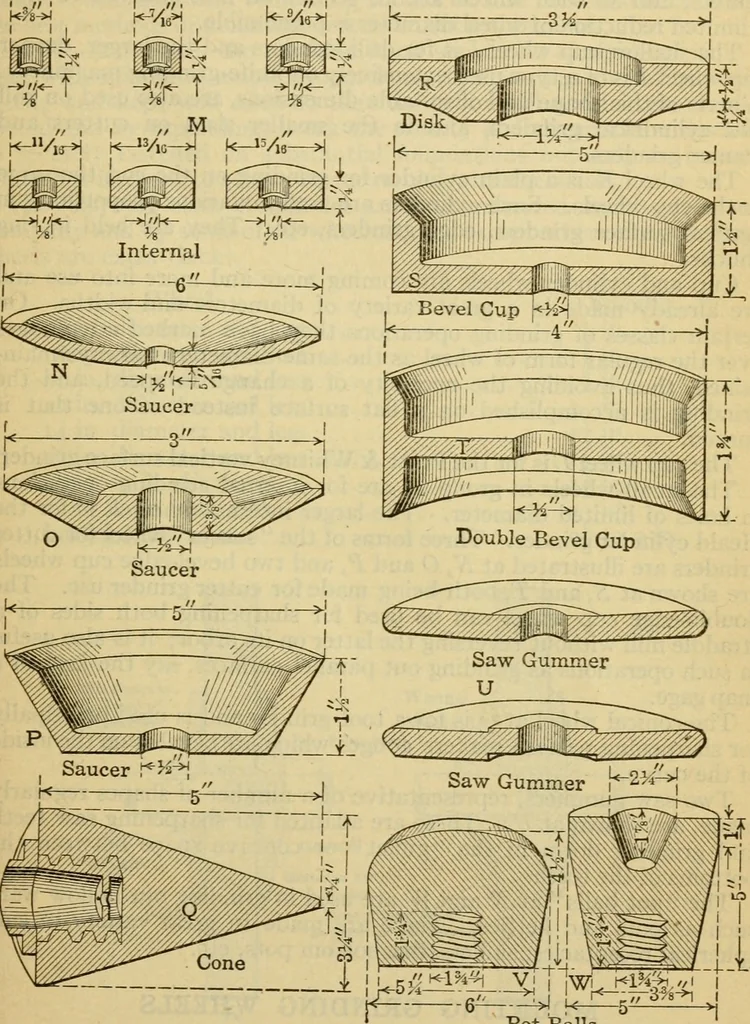

Cylinder Fig. 9. — Shapes of Wheels -9H—Cup THE SHAPES OF WHEELS 225 der and saucer wheels. These shapes and some of their modifica-tions are included in the groups of wheels illustrated in Figs. 9-10.These wheels are in most cases made in numerous widths anddiameters, and the dimensions given in… … Pot BallsFig. 10 — Shapes of Wheels show the proportions of one size of wheel selected as t3pical fromthe comprehensive Hsts of wheel manufacturers products. Of the wheels shown, A and B are plain disks; C is an offset diskused on cylindrical grinders for grinding close up to a gear, collar,…
