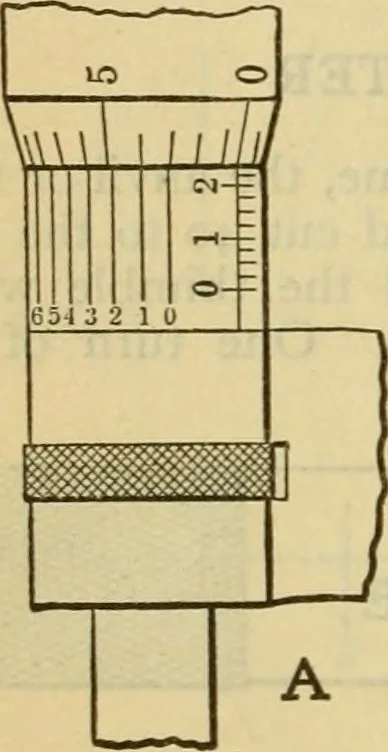

100 and 25, 50, 75 and then add thenumbers shown on the thimble 3, making .178 in all. If it showed4 and one mark, with the thimble showing 8 marks, the readingwould be 400 + 25 + 8 = 433 thousandths or .433. THE TEN-THOUSANDTH MICROMETER This adds a vernier to the micrometer sleeve or barrel as… … Thimble II II Inn II J 43210 Sleeve Thimble M I III I Mil 098654 32: Sleeve B Fig. 7. — Micrometer Graduations the thimble. If the two zero lines match two lines on the thimble,the measurement is in even thousandths as at B which reads .250.At C the seventh line matches a line on the thimble so the…
