American machinists' handbook and dictionary of shop terms : a reference book of machine shop and drawing room data, methods and definitions (1914)
Colvin, Fred H. (Fred Herbert), 1867-1965, Stanley, Frank A. (Frank Arthur), b. 1874 · New York : McGraw-Hill book company ; London : Hill · leaf 434

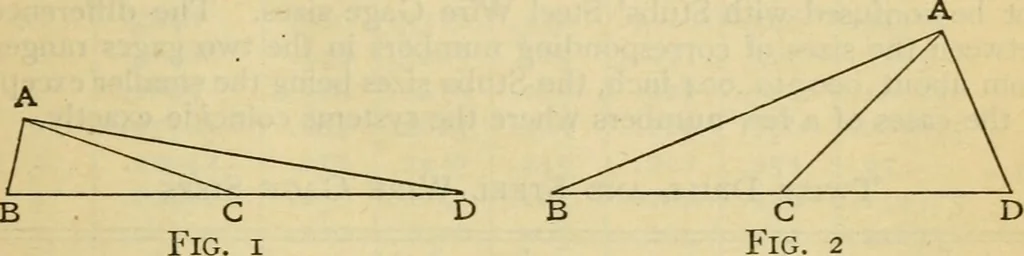

f a cubic inch of the material will give the weight ofthe fillet. USEFUL SUGGESTIONS 405 LAYING OUT A SQUARE CORNER It sometimes happens that we wish to lay out a perfectly squarecorner and have no square of any kind handy. Here is a way thatrequires nothing but a scale or rule, or even a straight… … of equal length each side of the point C Then if you join pointsDAB, you have an exact right-angle or square corner. Fig. 2 is simply another example of this, in which the line A Chas been drawn at a very different angle to show that it works inany position. Joining the ends D A B a.s before also…
Machine-shop practice
Internet Archive · UMass Dartmouth, Claire T. Carney Library · Public Domain Mark 1.0. Free to use for anything.
