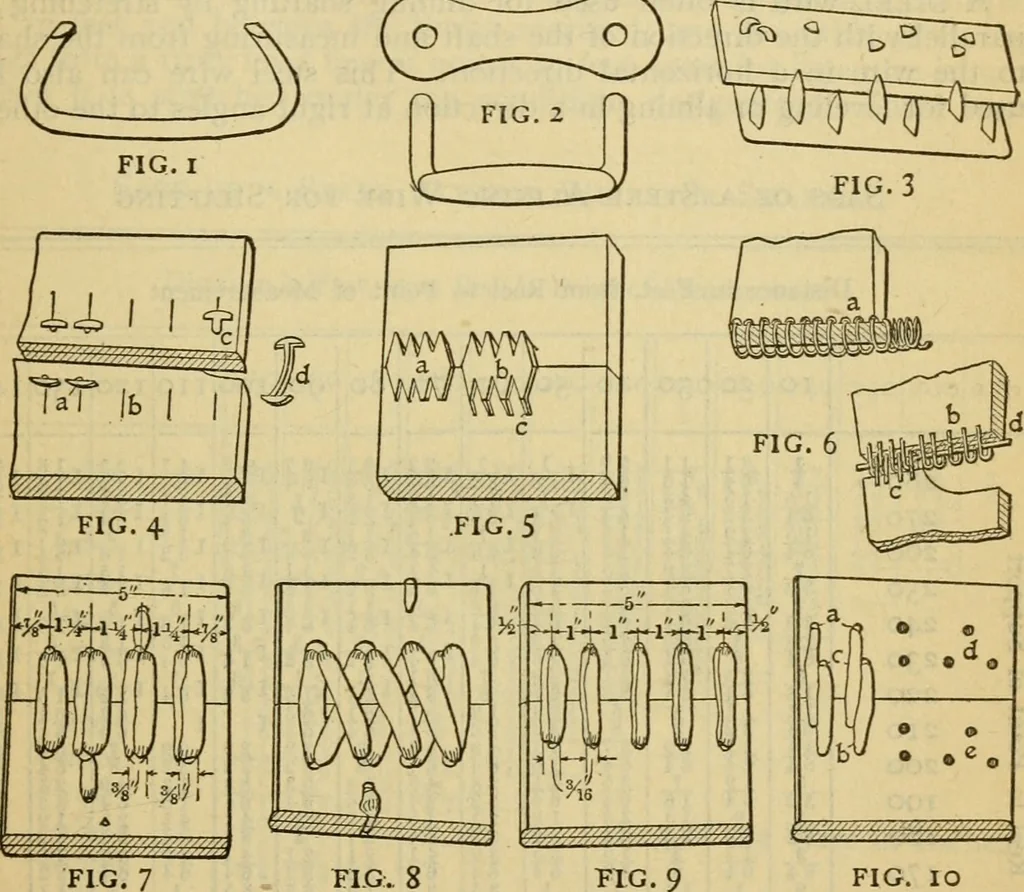

by means of lacings. The belt shown by Fig. 9 has 81-4- per cent, of 1.875 square inchesof section, = 1.525 square inches left after cutting out the five holes.This amount is good for 3000 X 1.875 = 5625 pounds breakingstrain, and as the lacing will tear out under 2500 pounds, it will beseen that… … PI.Gv 8 FIG. 9 Belt Hooks and Lacings working strain for the belt, ori7i5-7-5=343.5 pounds to eachlace. This, too, is too much, as it is less than a factor of safety of 2. The belt to carry 40 pounds working tension to the inch of widthmust also carry about 40 pounds standing tension, making a…
