American machinists' handbook and dictionary of shop terms : a reference book of machine shop and drawing room data, methods and definitions (1914)
Colvin, Fred H. (Fred Herbert), 1867-1965, Stanley, Frank A. (Frank Arthur), b. 1874 · New York : McGraw-Hill book company ; London : Hill · leaf 617

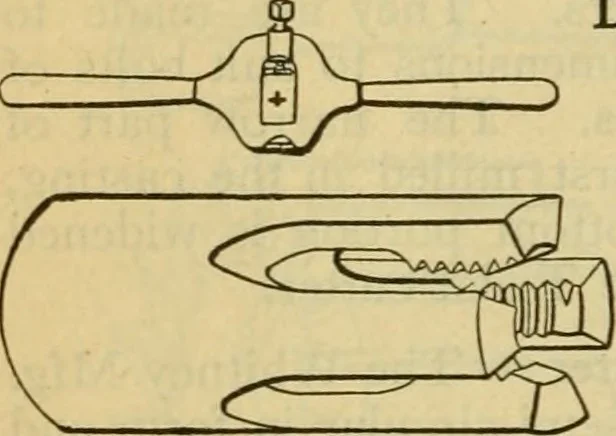

y hand.Die Chasers — Threaded sections inserted in a die head for cuttingbolts and screws. , Die, .Screw Plate or Stock — A frame orhandle for holding a threading die. Some-times die and handles are of one piece.Die, Spring or Prong — Die with cuttingportions in the end of prongs; canbe adjusted… … DIES, PUNCH PRESS Bending Dies, Compound- In compound bending dies of the typeshown the work is car-ried down into the dieby punch A, and heldthere while the beveled-fingers B act upon theslides C and cause themto move forward in thetop of die D and bendthe material to the out-line of the punch.…
Machine-shop practice
Internet Archive · UMass Dartmouth, Claire T. Carney Library · Public Domain Mark 1.0. Free to use for anything.
