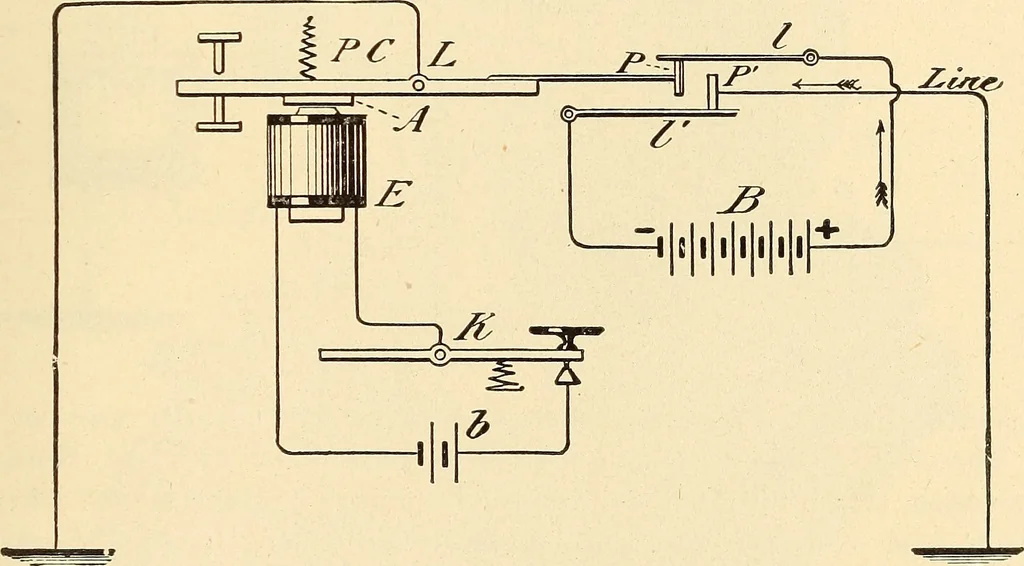

ed by the arrow. When the key, k, is opened, the extension of l is caused to descend. As itdoes so the strip /follows p until it is stopped by the contact point p. p then severs con-nection with / and, descending still further, makes contact with /, which it pushes awayfrom p, the whole assuming… … In Fig. 752 a relay, pr, corresponding to R in Figs. 149 and 150, is shown as ata distant end of the line. Its armature controls a sounder s. It is plain that asoften as the battery is reversed by the pole-changer the direction of the currentin the coil of r will also be reversed and, consequently,…
