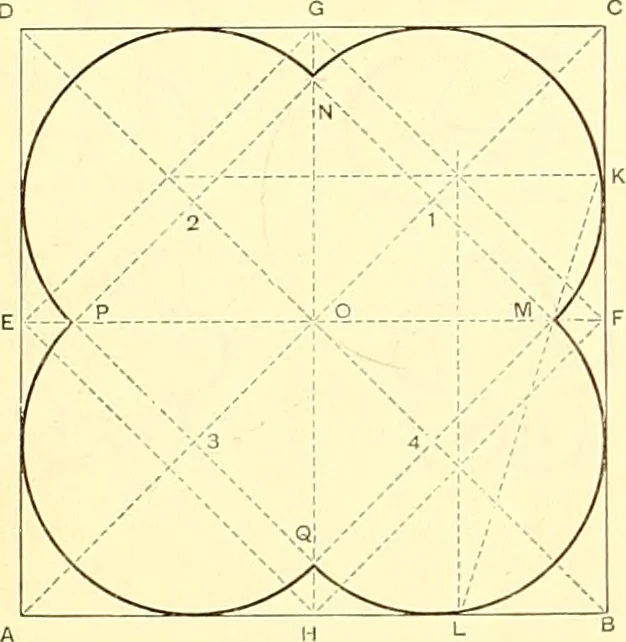

are, and their diameters forming a square. Draw a square ABCD. Draw the diagonals and diameters.Bisect H B and F C in L and K. Draw L K, cutting the diame-ter E F in M. Set off the distance 0 M on the semidiameters inN P Q. Join these points. Where the lines intersect the diagonalsin 1 2 3 4 will…
