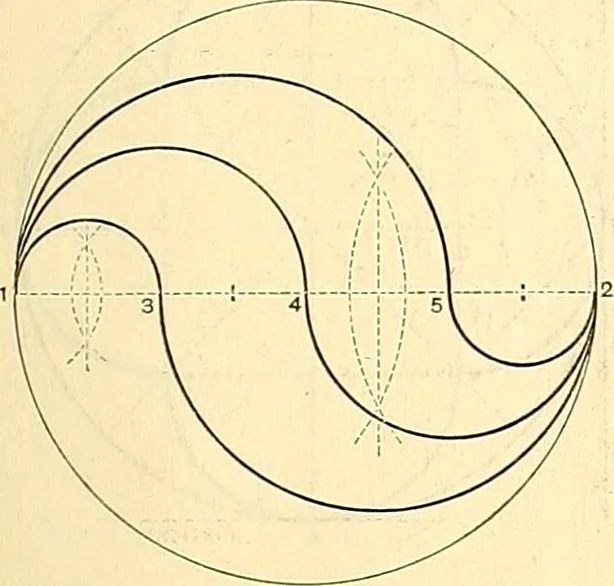

below the line. Bisect the part 3 2 of the line 1 2,and describe a semicircle below the line, and then describe a similarone on 1 o above the line. With 3 and 5 as centres, and 3 1 asradius, describe semicircles above and below the line 1 2, respectively. Prob. 81.— To construct any requ/ar figure,… … 6. Divide the arc 6 B into six equal parts. 6 is the centre, and6 A the radius of a circle, in which a hexagon may be described onA B. For a pentagon, mark off the distance 6 o on the perpendicu-lar in 5, and with o as centre, 6 A as radius, describe the circum-scribing circle. For a nonagon, mark…
