An analysis of Gothic architecture. Illustrated by a series of upwards of seven hundred examples of doorways, windows, mouldings, roofs, arches, crosses, panels, buttresses, seats, screens, etc., and accompanied with remarks on the several details of an ecclesiastical edifice (1903)

Brandon, Raphael, 1817-1877, Brandon, J. Arthur (Joshua Arthur), 1822-1847 · Edinburgh, J. Grant · leaf 62

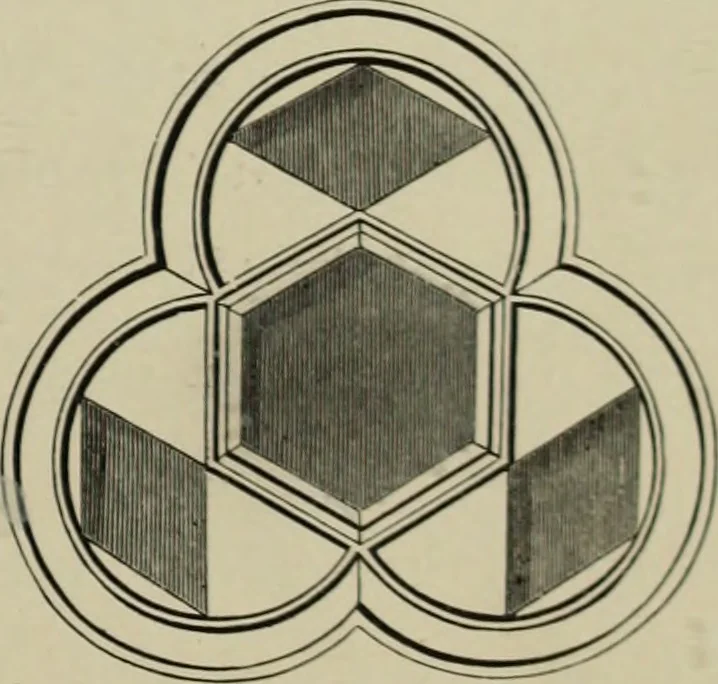

An illustration from An analysis of Gothic architecture. Illustrated by a series of upwards of seven hundred examples of doorways, windows, mouldings, roofs, arches, crosses, panels, buttresses, seats, screens, etc., and accompanied with remarks on the several details of an ecclesiastical edifice, 1903, leaf 62
hants, exemplifies the practicalapplication of the equilateral triangle in a manner too remarkable to behere altogether unnoticed. The plan is an equilateral triangle. The roofon all three sides is divided into three equilateral gables; and in the win-dows and from them to every minutest detail,… … 48 ANALYSIS OF GOTHIC ARCHITECTURE.
