The analysis & reproduction of textile fabrics : being a reasonable explanation of the necessary calculations and processes involved in analysing, effecting the required changes, and reproducing all the principal types of woven textures, from the raw materials to the finished cloth ; with an appendix upon "The cost of cloths." (1894)
Barker, A. F. (Aldred Farrer), b. 1868 · Manchester : Marsden · leaf 56

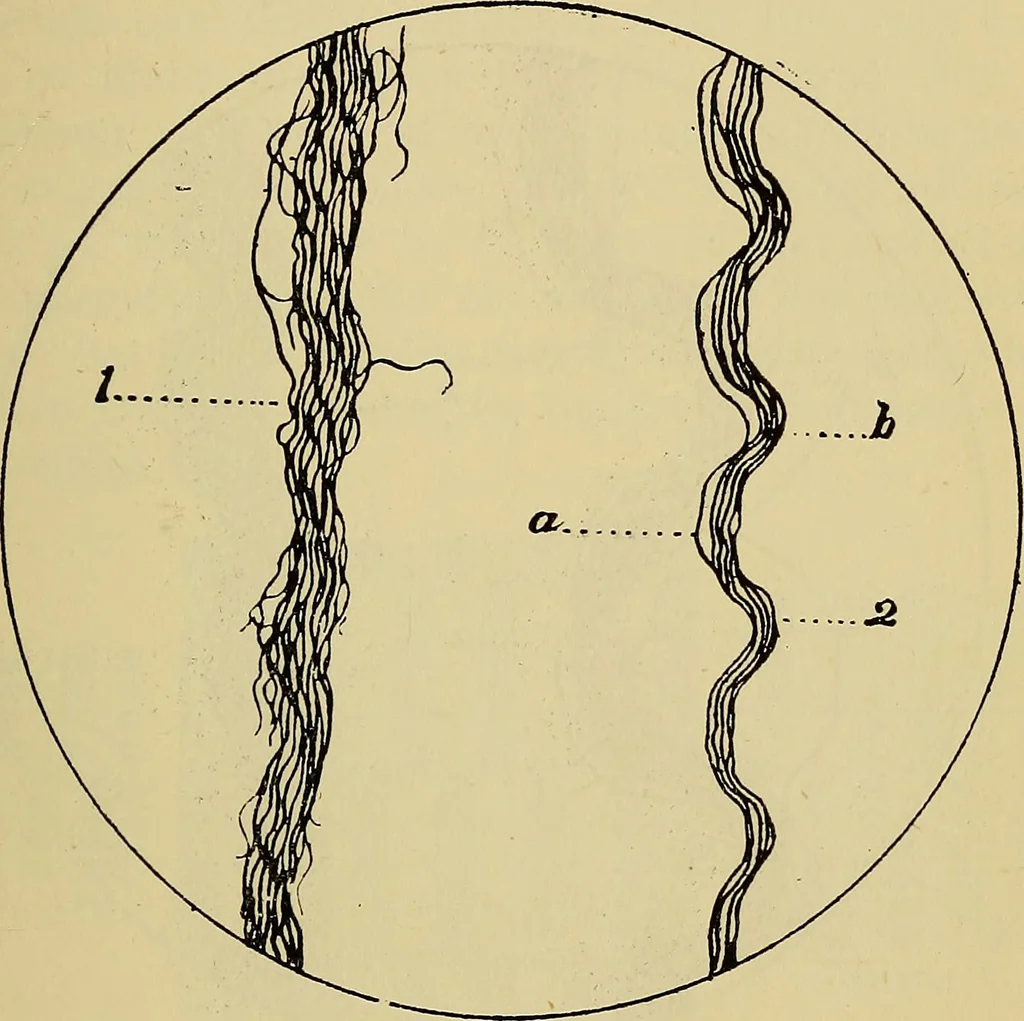

er favourablecircumstances the warp being quite straight and theweft doing all the bending, thus forming a prominent ribrunning with the warp. Design III. is the two-and-one orcashmere twill, of which a micro-photographic reproduc-tion of actual threads is given in Figure 16. It is 43 noticed at… … Fig. 16. and threads is also clearly indicated by the wave of thepick here represented, (a) indicating the pick floatingover two threads and (b) where it is down for one. It isvery evident, then, that if there is any doubt as towhether the ribs or twills in a pattern are of the samebreadth, a…
Textile design · Weaving
Internet Archive · UMass Dartmouth, Claire T. Carney Library · Public Domain Mark 1.0. Free to use for anything.
