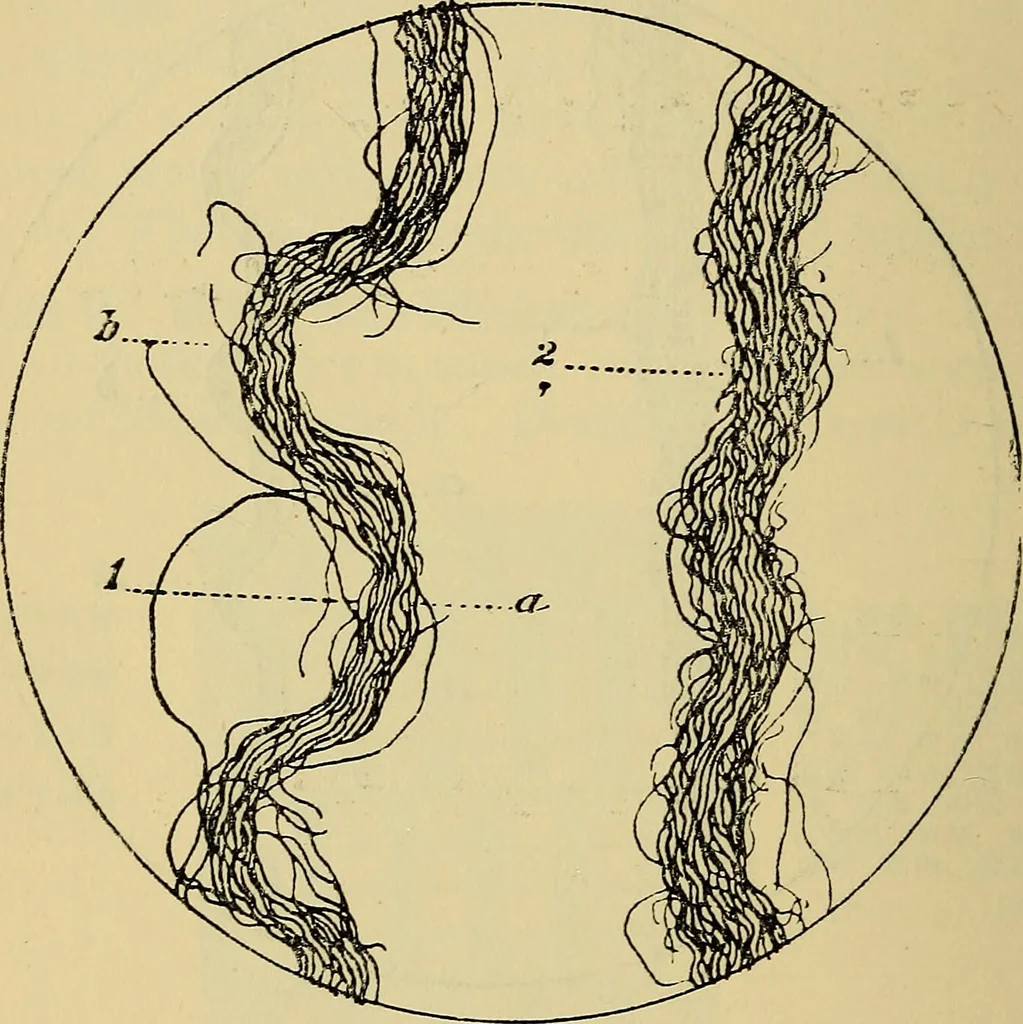

icating the pick floatingover two threads and (b) where it is down for one. It isvery evident, then, that if there is any doubt as towhether the ribs or twills in a pattern are of the samebreadth, a careful examination of the curvature of apick will solve the question. In this class of goods it 44… … Fig. 17. warp bends while the weft lies straight, thus forming ribswhich run with the weft. Figure 17 shows thisclearly, (i) being the warp thread, and (2) the weft pick.Design IV., of which Figure 18 is a flat view, is a typicalwarp rib, but Design V.was employed in the cloth fromwhich the thread…
