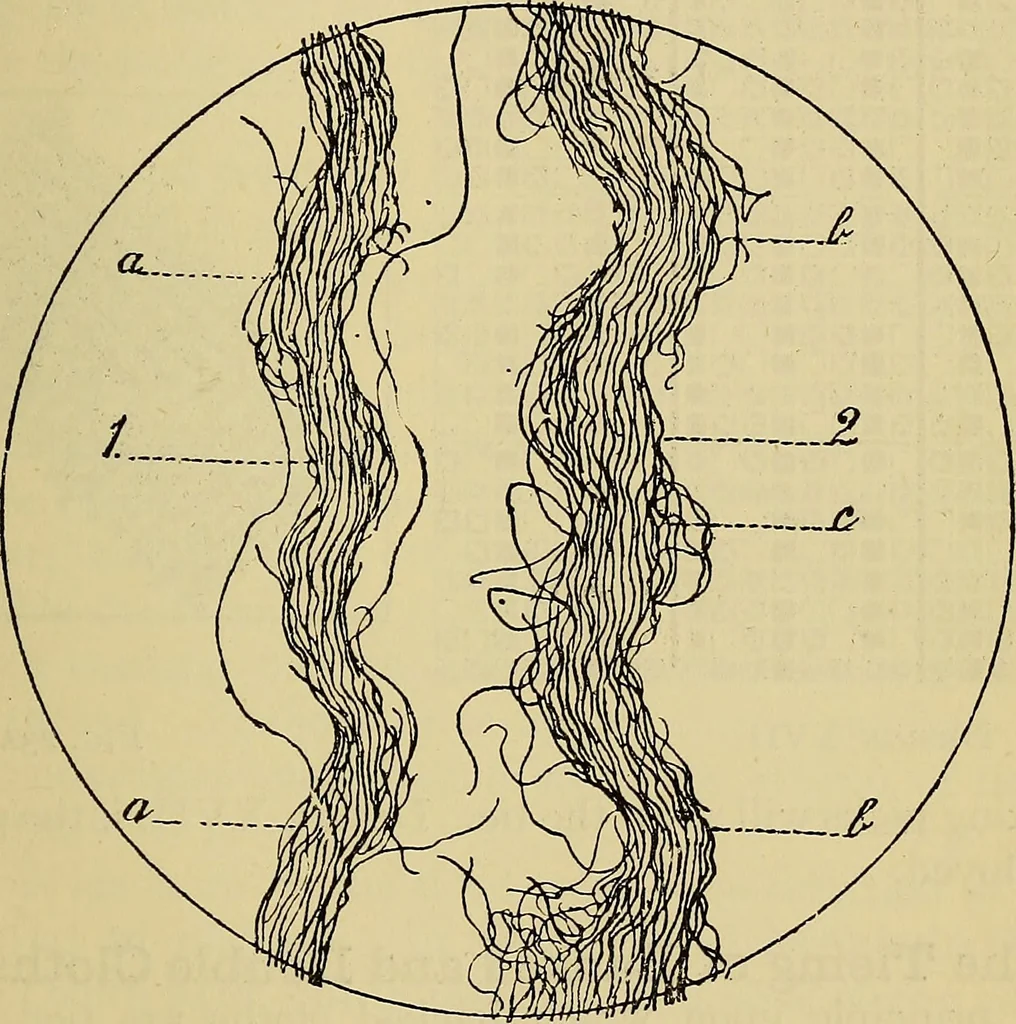

, along withthe counts of yarn, and (4) Find the method of tieing, whether with warp or weft, and the system of distribution.With reference to this latter proceeding Figure 24demonstrates a very useful point. Here (i) is a threadtaken from the face of a cloth made as follows :— 59 Warp. 2 threads… … Fig. 24. to the face being as fine again as the back cloth, thecurves of the two-and-two twill coincide with the plain.Further, it is evident from an examination of the curveof the backing thread that the back cloth has been tied 6o to the face by means of the backing warp, h indicatingthis tie,…
