The analysis & reproduction of textile fabrics : being a reasonable explanation of the necessary calculations and processes involved in analysing, effecting the required changes, and reproducing all the principal types of woven textures, from the raw materials to the finished cloth ; with an appendix upon "The cost of cloths." (1894)

Barker, A. F. (Aldred Farrer), b. 1868 · Manchester : Marsden · leaf 85

An illustration from The analysis & reproduction of textile fabrics : being a reasonable explanation of the necessary calculations and processes involved in analysing, effecting the required changes, and reproducing all the principal types of woven textures, from the raw materials to the finished cloth ; with an appendix upon "The cost of cloths.", 1894, leaf 85

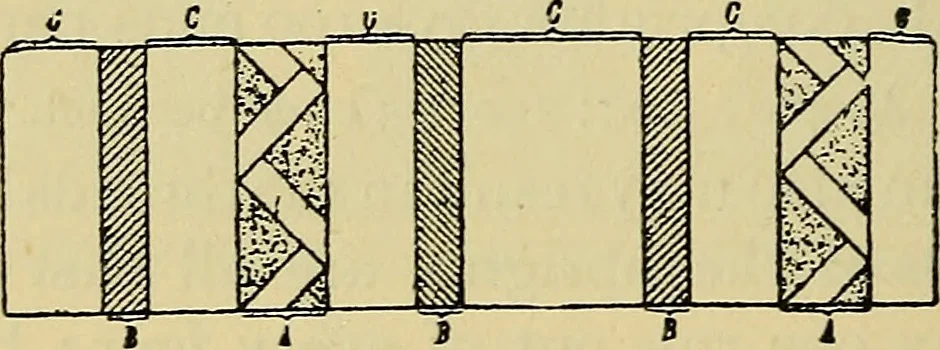

more dis-tinct setts of healds will be employed, one sett to weavethe ground, and the other the figure or crammed stripe.Then— (a) The number of shafts in each sett will dependupon the respective weaves. Example.—For a plain ground with an eight-end sateencrammed stripe, two or four shafts for the… … B t |. I [, ■ I j. --[ ■ [, S C A L t - Fig. 27.Example.—In the stripe given in Figure 27, the ex-tent is three inches, and since there are three separateeffects. A, B, and C, there will be three setts of shaftsrequired to reproduce the pattern. Suppose, then,4 shafts are required for the ground…
