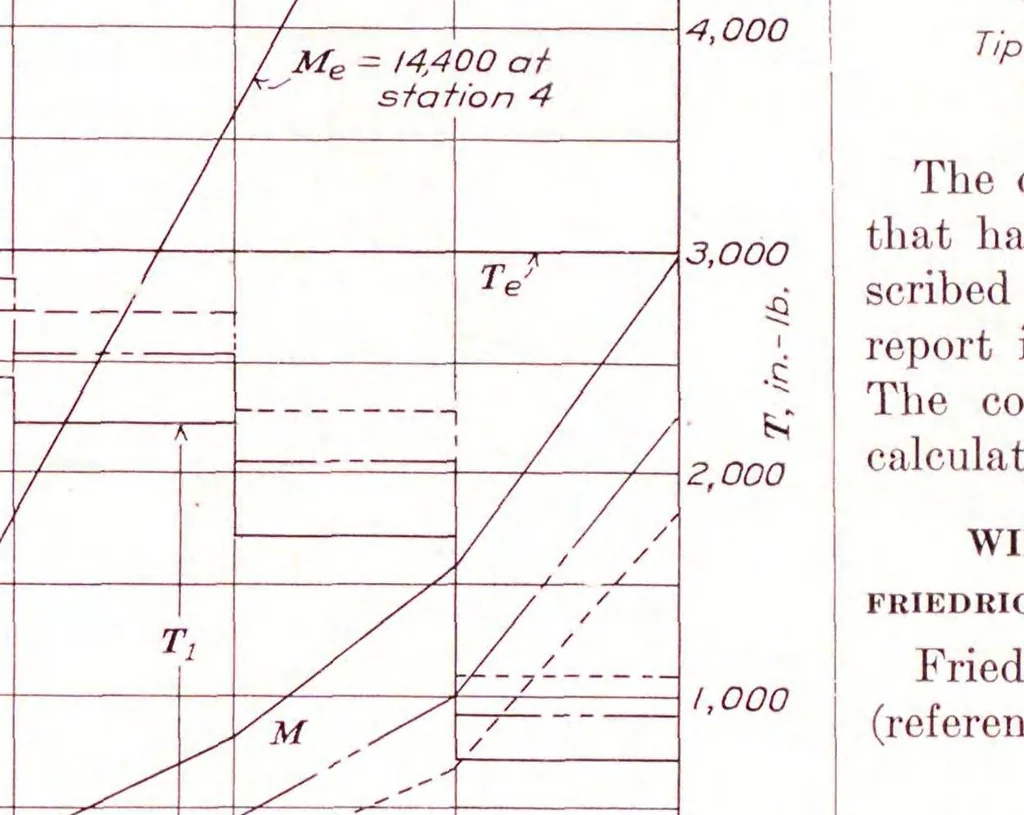

rative calcula¬ the spar webs form two sides of the torsion box. This tions on wings with constant-section spars indicate method was used by Friedrichs and von Karman that- it is always conservative in the practical range oi (reference 2) for calculating a duralumin test wing stiffness ratios. with… … 0 5 3 Siotion Root Tip Figure 18. — Relief moments in XII B-3 wing frame calculated by three methods. Figure 19.— Bending moments in XII B-3 wing frame. there is a discrepancy in the total deflections that on the Friedrichs-von Karman results. By an inte¬ gration of the resulting M/EI curve, the…
