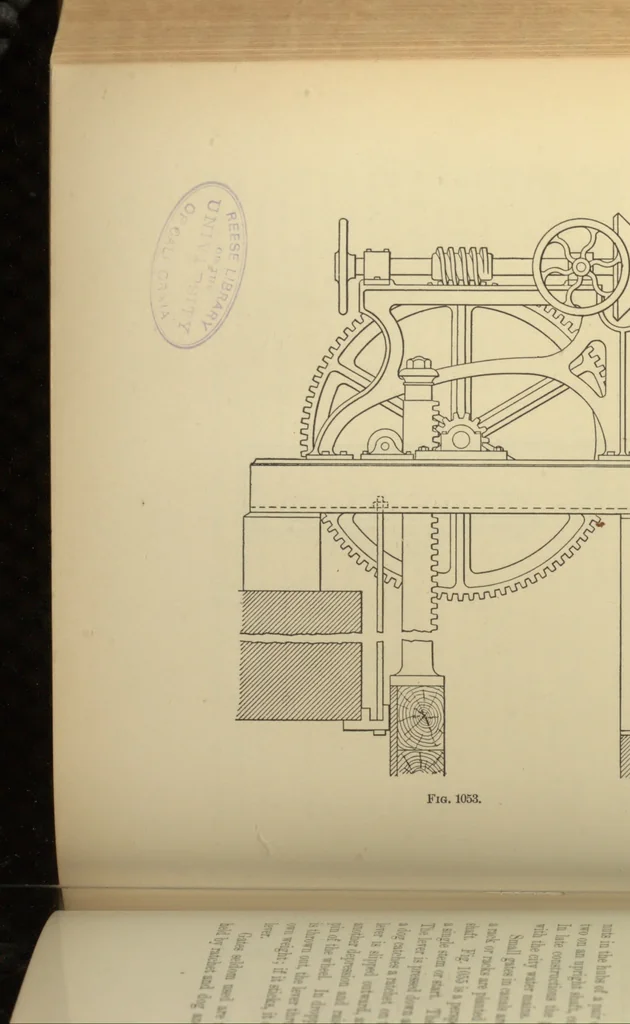

H^fei1 Cl 446 ENGINEERING DRAWING. … ENGINEERING DRAWING. 447 there is a worm-wheel, driven by a worm or screw on a shaft perpendicular tothe pinion-shaft. The worm-shaft can be driven either by a hand-wheel at oneend, or by ihe friction-bevel at the other. The friction-bevel can be driven ineither direction by being brought in…
