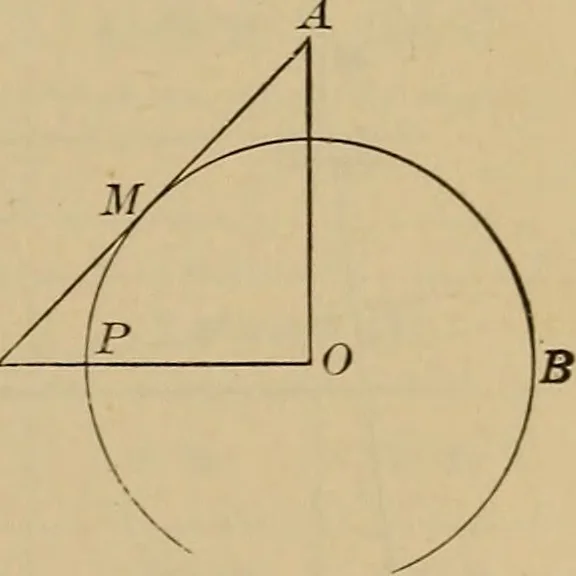

of contact; A M will be theradius for the central parallel and A the point from which all parallels aredescribed. Fig. 250 shows the cone developed on a plane surface. Thelength of a degree on a meridian of the earth is 69-41 miles at the poles and68-70 at the equator. Bonnets Projection.—In this… … Fig. 249. 114 TOPOGRAPHICAL DRAWING. conic projection drawn through the graduation of the central meridian. Eachparallel, however, is divided in accordance with the varying lengths of a degreeof longitude in the different latitudes (see table) and an arc passed through
