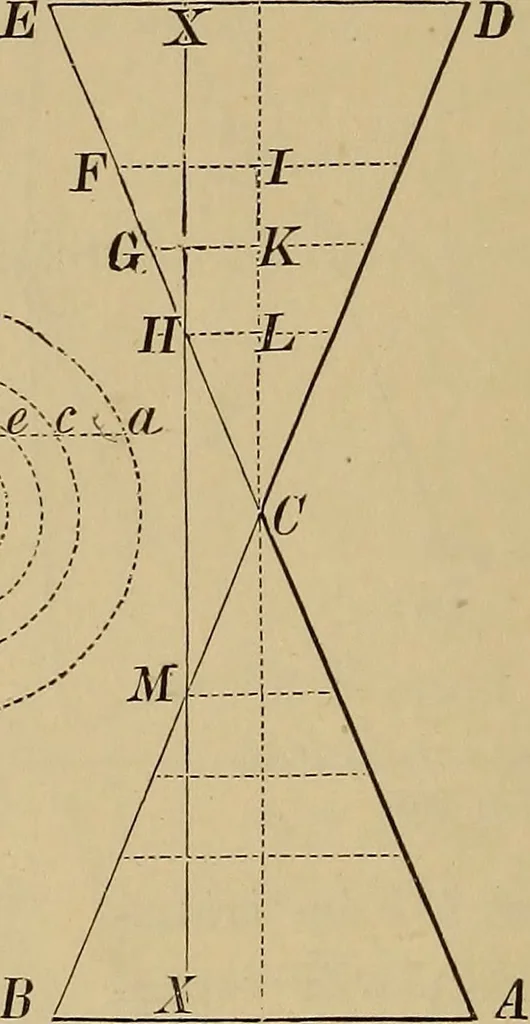

Let C E D and 0 B A be the two cones, and X X the position of thecutting plane. Project in plan either of the cones, as Z* E D; from its centre,with a radius equal to L H, describe a circle, and draw the tangent ha; hawill be the horizontal projection of the cutting plane. Draw the line H…
