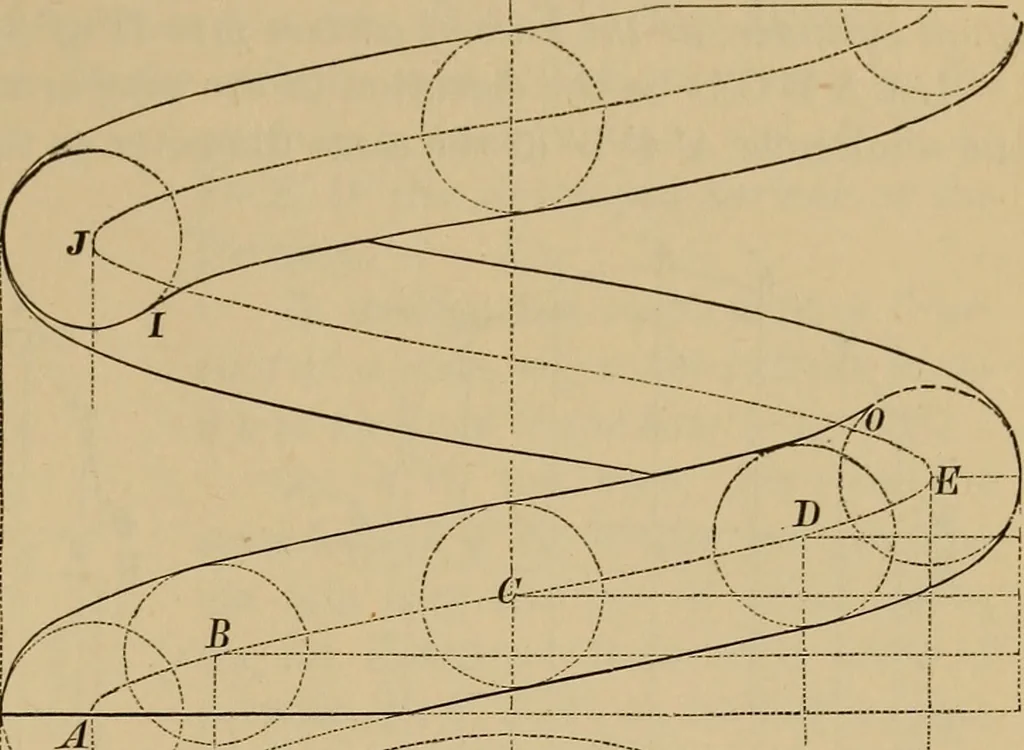

ORTHOGRAPHIC PROJECTION. 141 … -\ The lines A K, B L, C M, etc., represent the horizontal projections of thevarious positions of the generating straight line, which, in the present example,has been supposed to behorizontal; and these linesare projected vertically atA^ K, B L, etc. In the position A Kthe generating line is…
