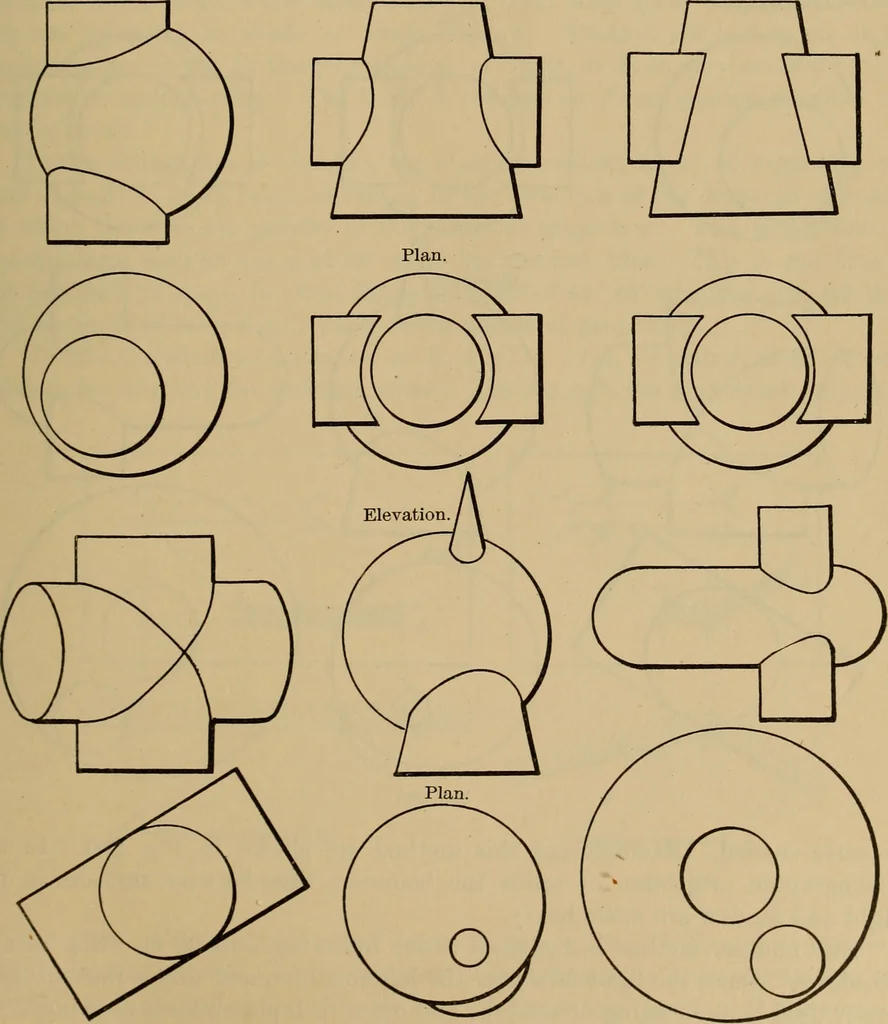

O Fig. Fig. 287. Fig. 288. Elevation. … Fig. 289. n 146 ORTHOGRAPHIC PROJECTION. minated by a diameter inclined at an angle of 45°, the shade being a graduatedone, as shown in Fig. 288. Fig. 289 is an example of this method. In a second method the elevation is shaded, as in the foregoing, but in theplan the light falls from the lower…
