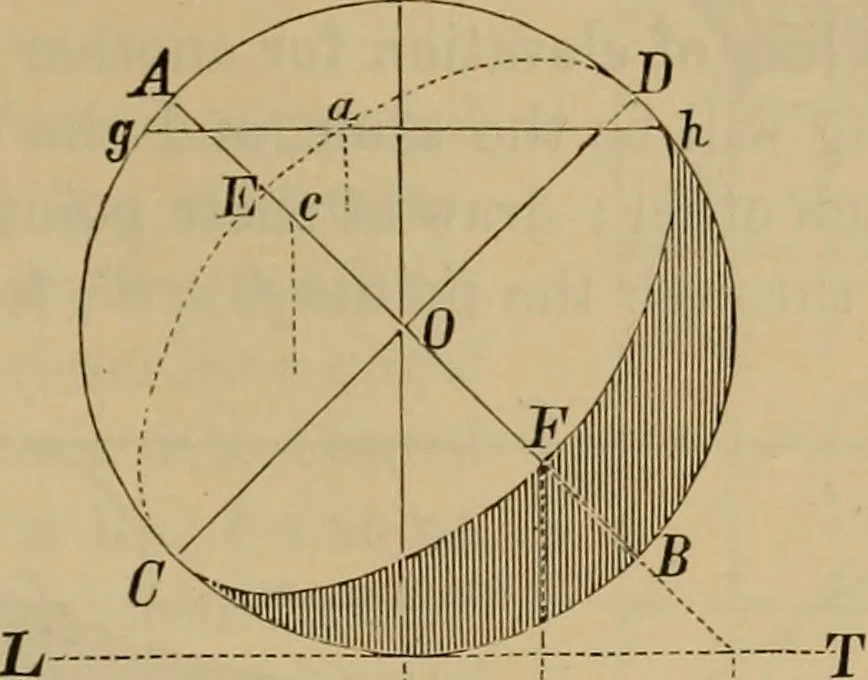

ine A a parallel to the ray oflight; project a till it intersects the line oflight A a in the elevation at a. The line ofshadow below a is the shadow of the edge ofthe cylinder, and is a straight line. The lineof shadow between a and e is the outline of thecircular part falling on a cylindrical…
