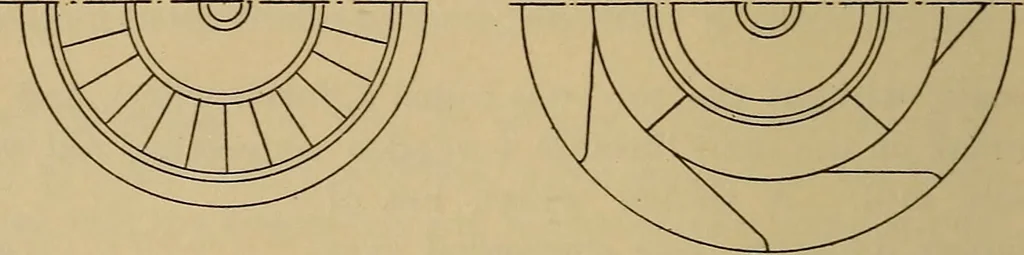

Fig. 399. Fig. 400. Fig. 401. Fig. 401 is the type of wheel commonly used; the fixed guides are at the outside ofthe wheel and the motion of the water is inward and downward against the buckets.The shaft of this wheel is generally vertical, and the power transmitted generally throughbevel gears,…
