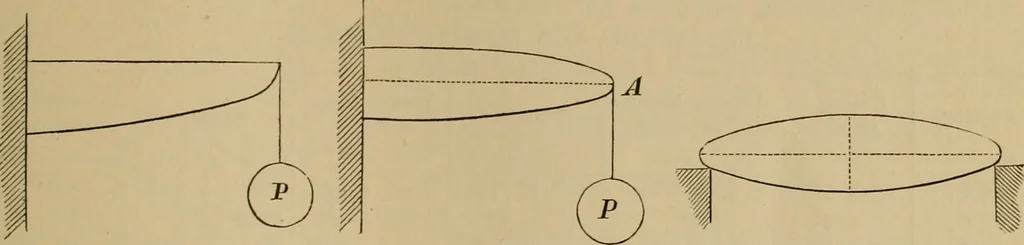

while the other side is extended ; and therefore, where extensionterminates and compression begins, there is a lamina or surface, g 7i, which isneither extended nor compressed, called the neutral surface. As the strainsare proportional to the distance from this surface, the material of which the… … FiG. 476. Fig. 477. Fig. 478. son found that the strength of cast-iron to resist compression is about six timesthat to resist extension ; the top web is therefore made only one sixth the areaof the lower one. The depth of the beam is generally about one sixteenth ofits length, the deeper of course…
