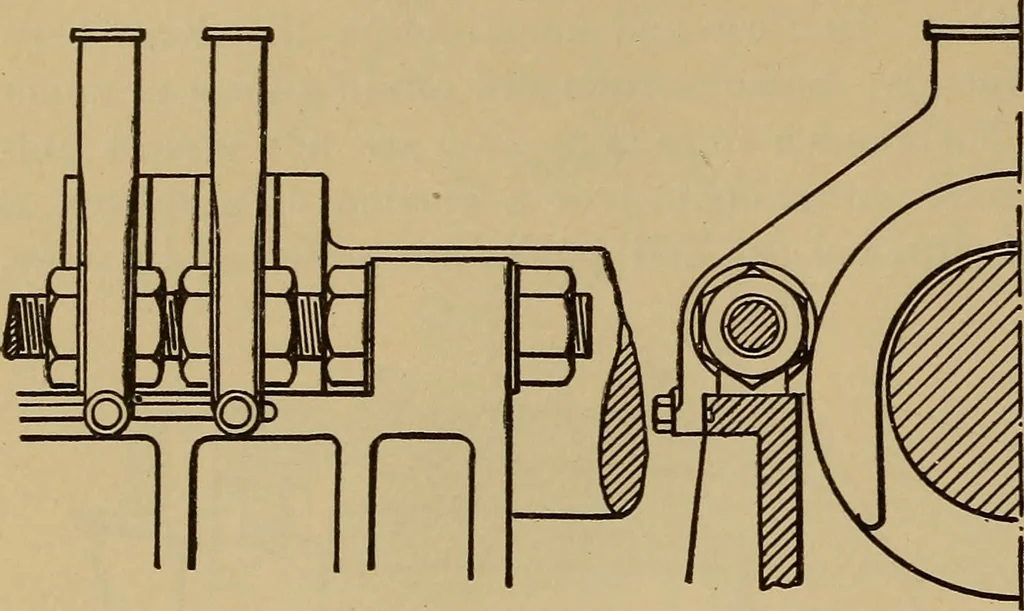

above the surface ofthe water, to force the oil down. For long, upright shafts, it is very usual to suspend the upper portion by asuspension-box, and to run the lower on a step, connecting the two portionsby a loose sleeve or expansion coupling,^to prevent the unequal meshing of thebevel-wheels,… … Fig. 595. Fig. 596. Fig. 592 is a one half outside end view, and one half transverse. Fig. 593is a section on the centre line of axle, and Fig. 594 sectional plan of box oncentre line of axle with a plan of journal and journal bearing of the standardjournal box adopted by the Master Car-Builders…
