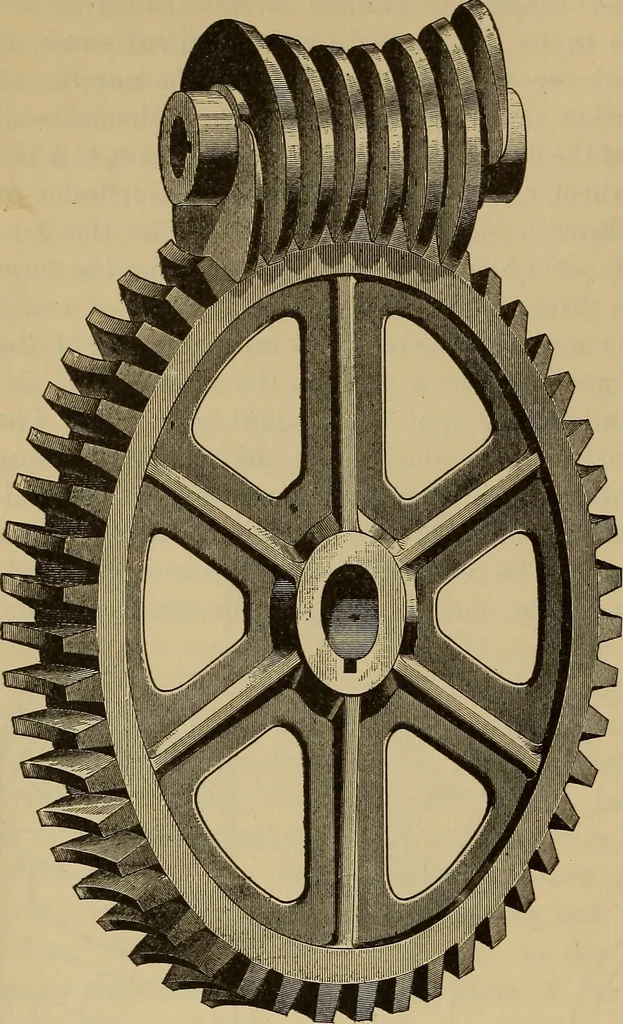

Fig. 709. Fig. 710. helical form of the thread of the screw. Usually the points of the teeth andbottoms of the spaces are formed of a concave outline, adapted to the convexity 330 MACHINE DESIGN AND MECHANICAL CONSTRUCTIONS. … of the screw, in order to pre-sent as much bearing surfaceas possible to its action. Inthis kind of gearing it is al-most invariably the screw thatimparts the motion. A screw is designated asright or left hand, according asthe forward motion is impartedby turning the screw to theright or left. In…
