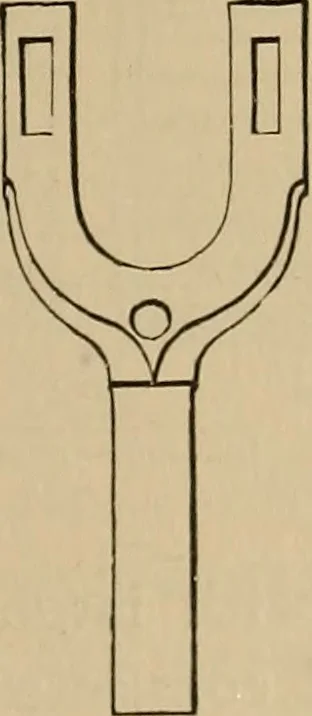

e each 30 feet long,by 6 4 deep at centre, by If thick. The connectionsbetween the two, shown in section in the figure, are cast-iron pipes with wide flanges at each end riveted or bolted to the plates. The main centre and other small journal-pins are rods of wrought-iron, passing through the… … Fig. 799. Fig. 800. 356 MACHINE DESIGN AND MECHANICAL CONSTP.UCTIONS. m for main centre-pin, and g for the parallel-motion links. This last is usu-ally the position of the air-pump centre, but in this engine the air-pump is
