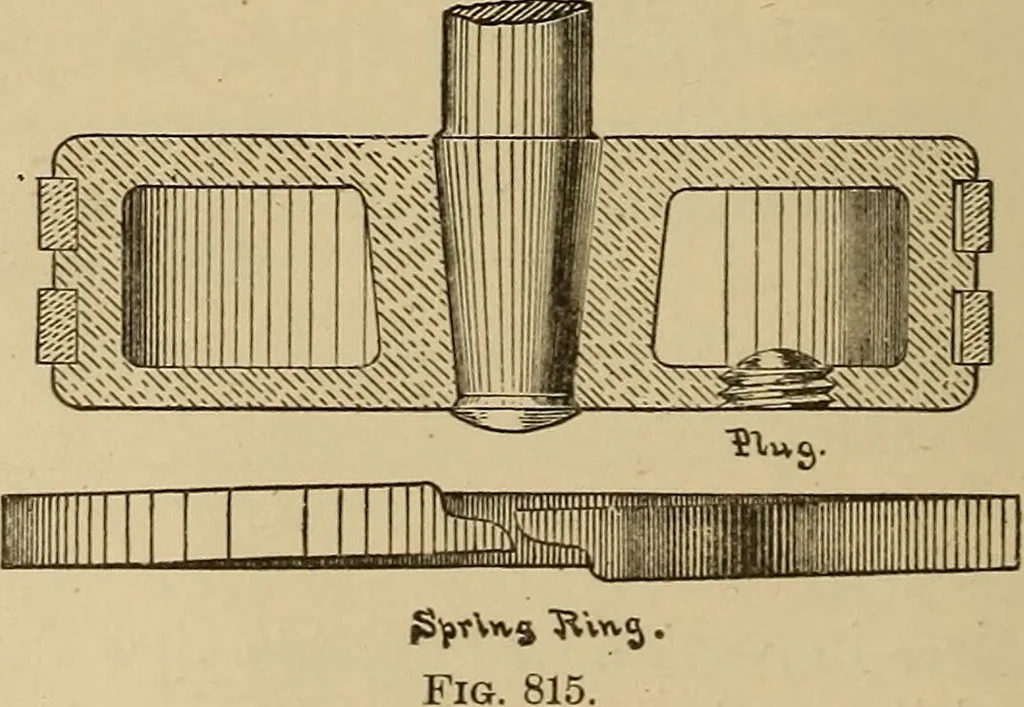

is made with a half lap, andthe splits of the two rings are on oppo-site sides of the piston. The outsides ofthe rings are turned to a diameter slightlyin excess of that of the cylinder, and aresprung into recesses of the piston fittedto receive them. Fig. 816 is a half plan and half sec-tion and… … MACHINE DESIGN AND MECHANICAL CONSTRUCTIONS. 361 HALF SECTION C D
