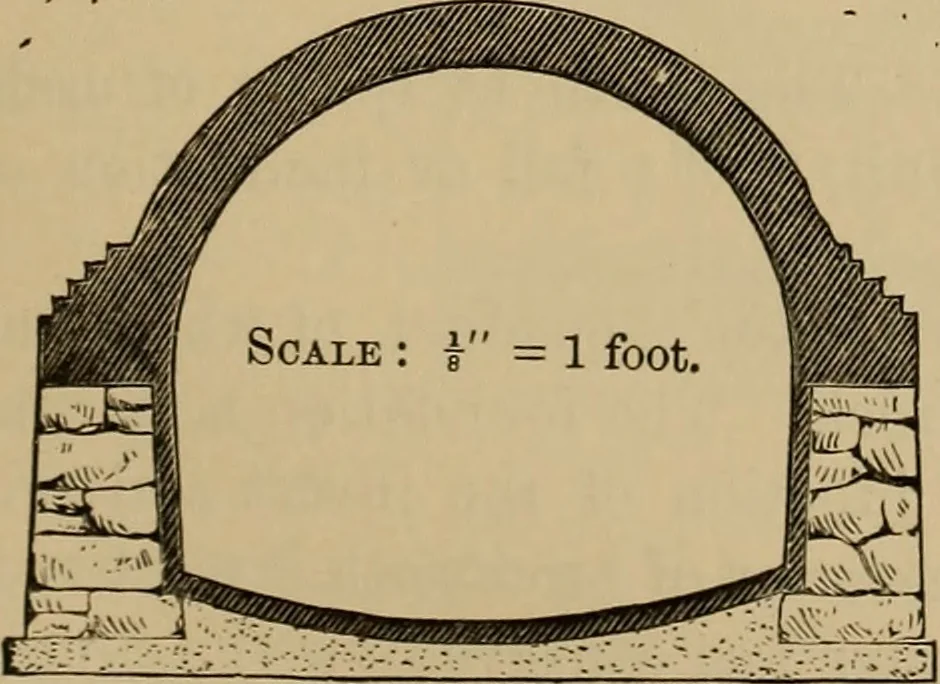

f the flumes, especially forturbines and reacting wheels: a coarserack outside, with wide spaces, say 2and a finer one inside, say of f to fspaces. Conduits for the supply of water tocities and,towns are of masonry, or cast-or wrought-iron pipes. Their capacity todeliver the required quantity… … Fig. 107,5. 458 ENGINEERINa DRAWING. structure, as the kind and amount of wetted surface, and length and directnessof line. . Fig. 1075 is a cross-section of the main conduit of the Nassau Water-Worksfor the supply of the city of Brooklyn, Long Island. The width is 10 at thespringing of the arch;…
