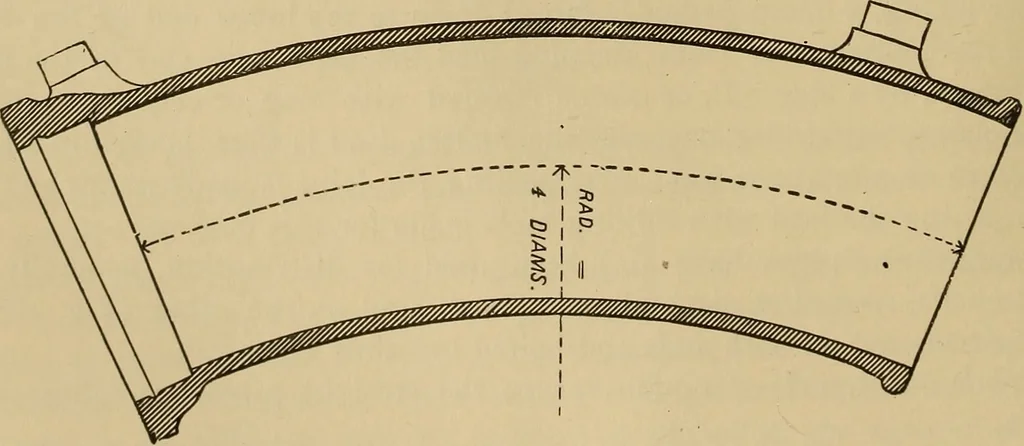

eends bell ends—it saves sleeves when pipes are cut, asthey usually are at street intersections. Fig. 1091 is a section of a sleeve for uniting cutpipes or uncut spigot-ends; a kind of double hub isoften used for the former. Sometimes sleeves aremade in halves, and bolted together. Fig. 1092 is the… … Fig. 1093. ENGINEERING DRAWING. 465 House-services are mostly lead pipes ; the taps on the mains for house-con-nections in New York city are usually 1. Fig. 1094 is a clamp sleeve.Figs. 1095 and 1096 are globe specialsof the Builders Iron Foundry, Providence,
