Worthen, William Ezra, 1819-1897, [from old catalog] ed · New York, Appleton · leaf 627

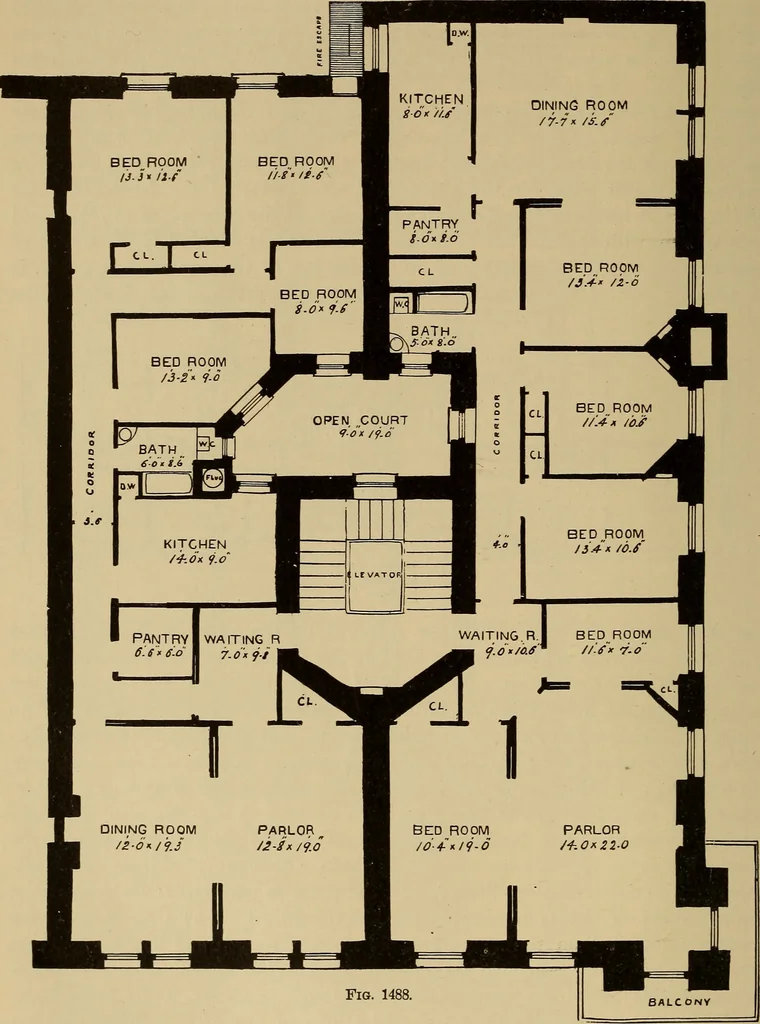

t nor single story, many unsurpassed inluxury of finish and appointments. The larger apartment-houses are often designated as flats. The suites shouldbe supplied with water, gas, and steam heat; should be entirely distinct in theirTentilation and protected against fire; some are now lighted by… … Fig. 1488, in a measure on the court, with a ventilating passage from the rear beneaththe fire-escape grating. Kitchens, in the figure, are attached to the suites;the laundries are in the upper story. Many flats are without kitchens or laun-dries, and meals are furnished either from without or from…
Mechanical drawing
