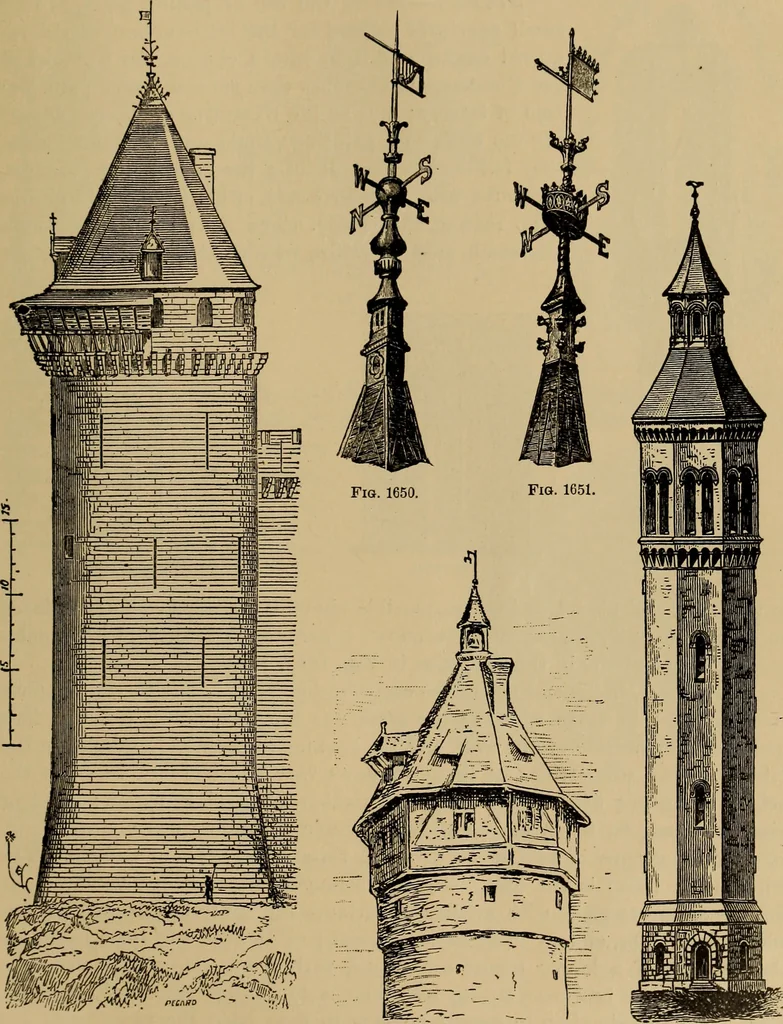

Fig. 1646. Fig. 1647. Fig. 1644. Fig. 1648. ARCHITECTURAL CONSTRUCTION. 673 less cut up and covered with ornaments. The spires of Freiberg Church, andmany others on the Continent, are open work. Figs. 1640 and 1G41 are bell-cots. Figs. 1642 to 1648 are spires. Fig. 1649is an apse, or circular end… … Fig. 1652. Fig. 1653. Fig. 1654. Figs. 1650 and 1651 are examples of spire finials, with weather-cocks.Figs. 1652 and 1653 are examples of towers not connected with churchedifices. Fig. 1654 is a tower of very recent construction, and is applied to the utili-44 674 ARCHITECTURAL CONSTRUCTION.…
