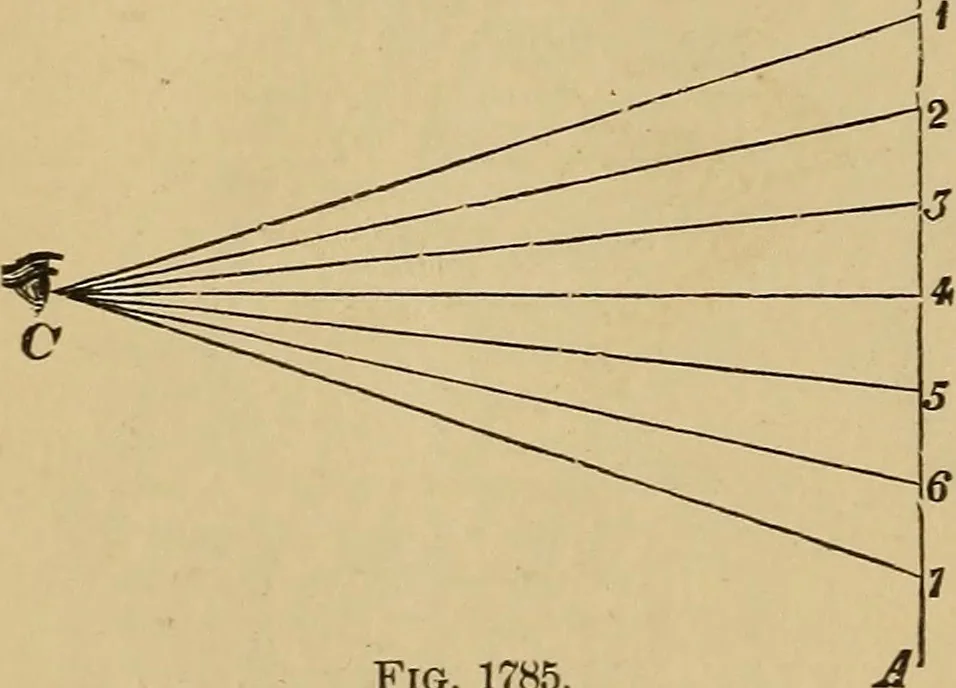

delineated., is called the plane of perspective or the plane of the picture. Theintersection G L of the first and second planes is called the line of projection,the ground., or base line of the picture. 3. The plane E F passing horizontally through the eye of the spectator, andcutting the plane of… … Fig. 1785 PERSPECTIVE DRAWING. TOY 4. The piano S T passing vertically through the eye of the spectator, andcutting each of the other planes at a right angle, is calleel the central plane. Point of vie?v, or point of sight, is the point where the eye is supposed tobe placed to view the object, as…
