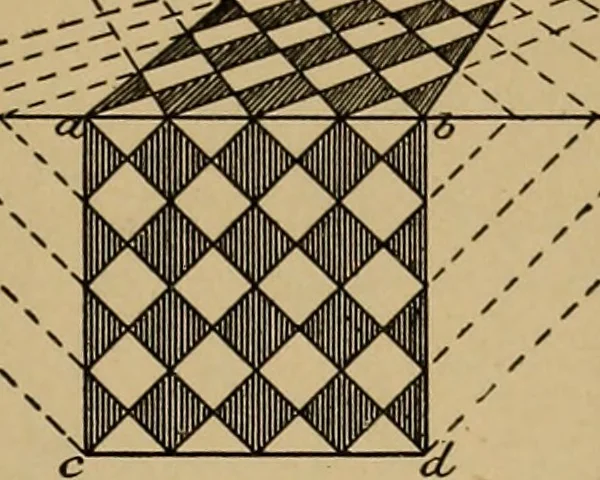

ecessaryto avoid complicating the perspective with the projections. Method of Perpendiculars and Diagonals^ to find the Perspective of a Pave-ment in Parallel Perspective (Fig. 1792).—a b d c is the pavement, the squareblocks running diagonally across it. PERSPECTIVE DRAWING. ni The projection of…
