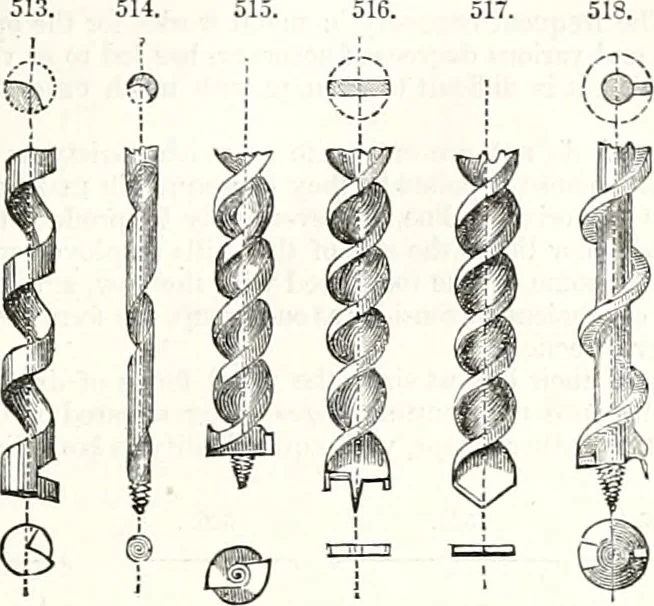

les or lips are sharpened to cut at theextreme ends, and a little up the sides also. The same kind of shaft is sometimes made as in Fig. 516, with a plain conical point, with two scoringcutters and two chisel edges, which receive their obliquity from the slope of the worm: it is as it werea double… … but it is in this form very effective in Hunters patent stone-boring machine, intended for stones notharder than sandstones ; the drill is worked by a cross, guided by a tube, and forced in by a screw cutupon the shaft carrying the drill; so that the stone is not ground to powder, but cast off in…
