Appleton's dictionary of machines, mechanics, engine-work, and engineering : illustrated with four thousand engravings on wood ; in two volumes (1873)
D. Appleton and Company · New York : D. Appleton and Co. · leaf 230

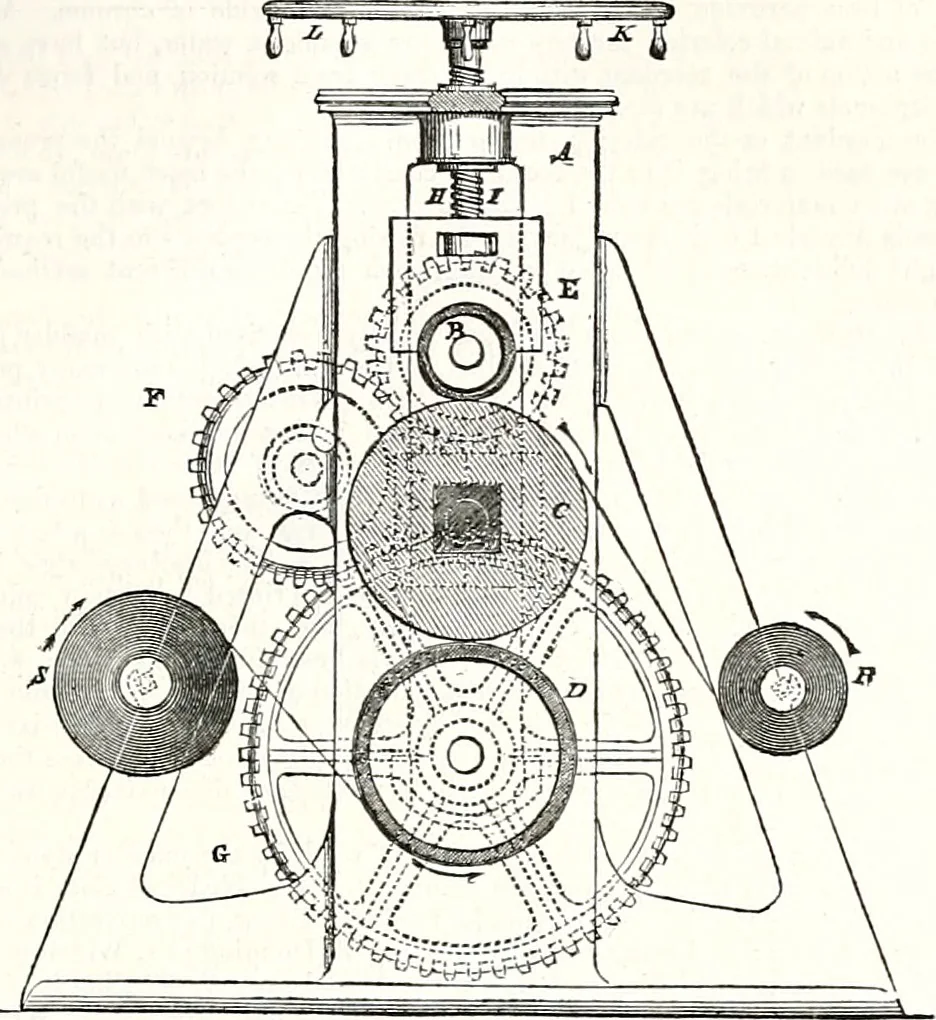

ated red hotThe material of the cylinder C is pasteboard, its axle is of wrought-iron. These three cylinders mustDe perfectly round and parallel. The wheel F forms the communication between E and G, which rest upon the cylinders B and DThe relation of F to the. circumference of the cylinders is… … In order to set the machine in motion, the fly-wheels K and L being turned in order to press thescrews Hand I against the pillows of the first cylinder B, the cloth is placed between the rollers in thedirection indicated by the arrows. CALICO PRINTING. The art of producing a colored patttern on…
