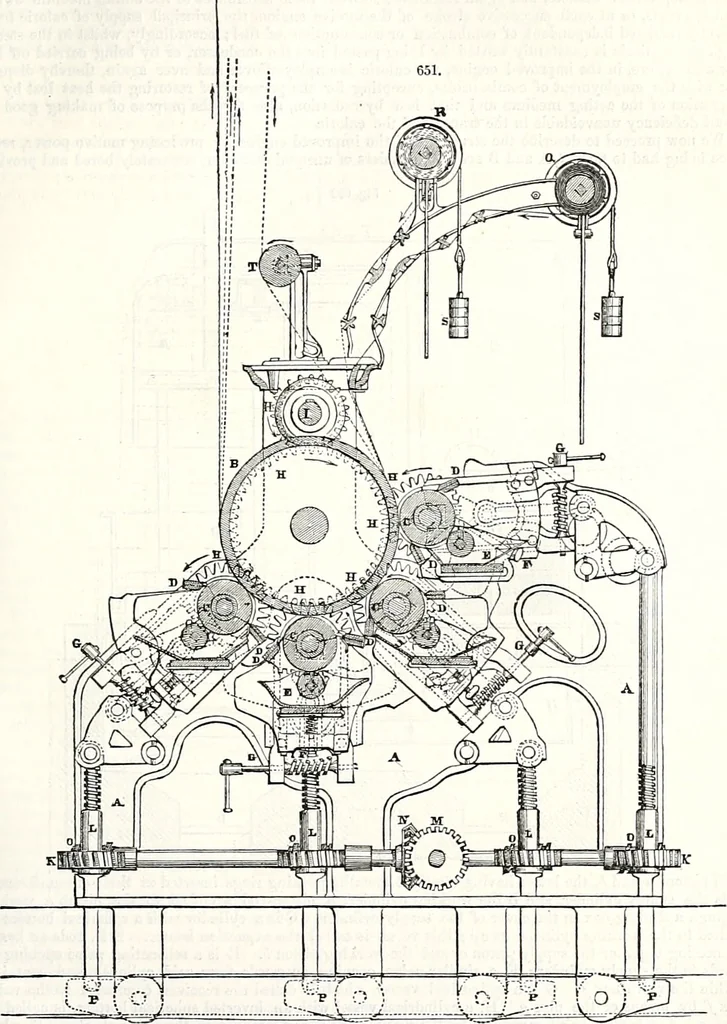

linders; their diameter is generally about 0-328 feet The vessels in which the rollers dip are made of copper or wood. It is necessary to keep them sup CALICO MACHINE. 229 plied with a constant quantity of printing material, for the rollers would soon only skim over the sur-face of the fluid and… … A A, frame-work. BBBB, pressing; cylinder. CCCC, engraved cylinder. DDDD, scrapers. EEEE, vessels containing the color-ing matter: they are raised andlowered at pleasure, by the screwsFFFF. GGGG, endless screw, guiding theregulators. BHHH, pinions and wheels whichturn all the machinery. I, a shaft…
