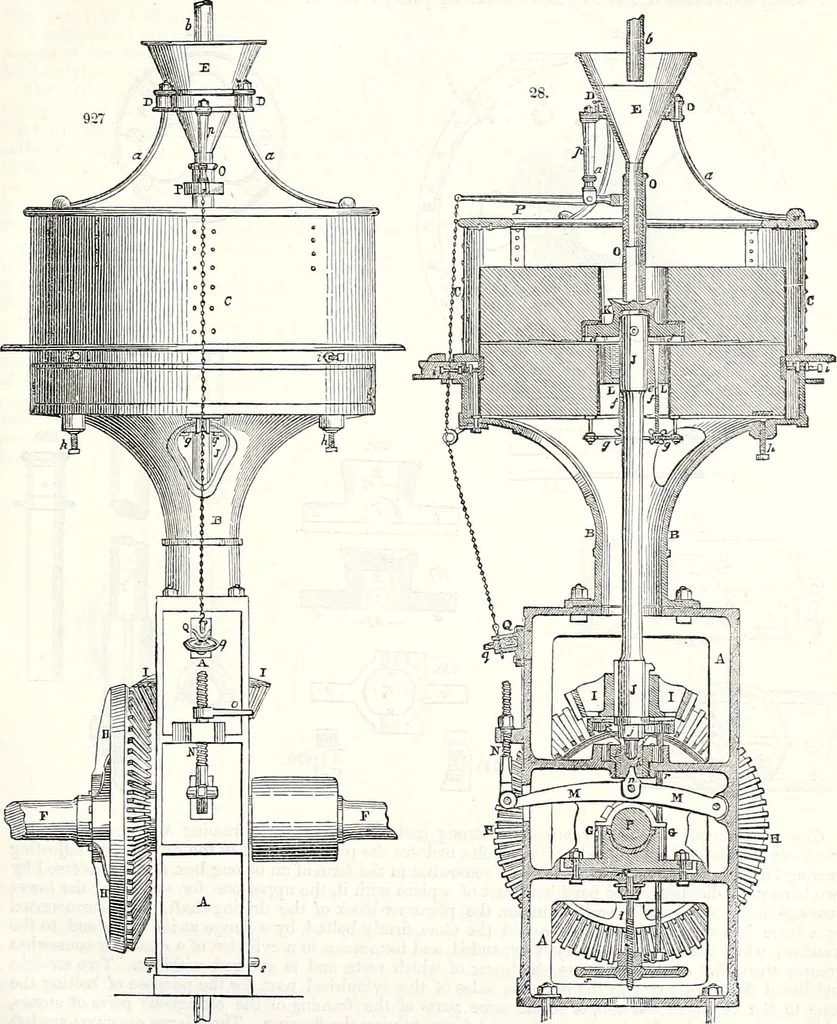

. Fig. 950 is a side elevation, and Fig. 951, a plan of the plummer-block of the driving-shaft. Fig. 952 is an external elevation, and Fig. 953, a plan of the driving pinion of the mill. Fig. 954 is a side view, and Fig. 955, a plan of the lever for adjusting the lever of the upperstone. Fig. 956… … Scale.—16 feet=7 inches. The figures 960 to 965 represent the different subordinate parts of the mechanism by which the lowerend of the mill-spindle is supported, and its position adjusted. _ Figs. 966 to 970. These figures represent the details of the mechanism employed for raising the dri-ving…
