Appleton's dictionary of machines, mechanics, engine-work, and engineering : illustrated with four thousand engravings on wood ; in two volumes (1873)
D. Appleton and Company · New York : D. Appleton and Co. · leaf 383

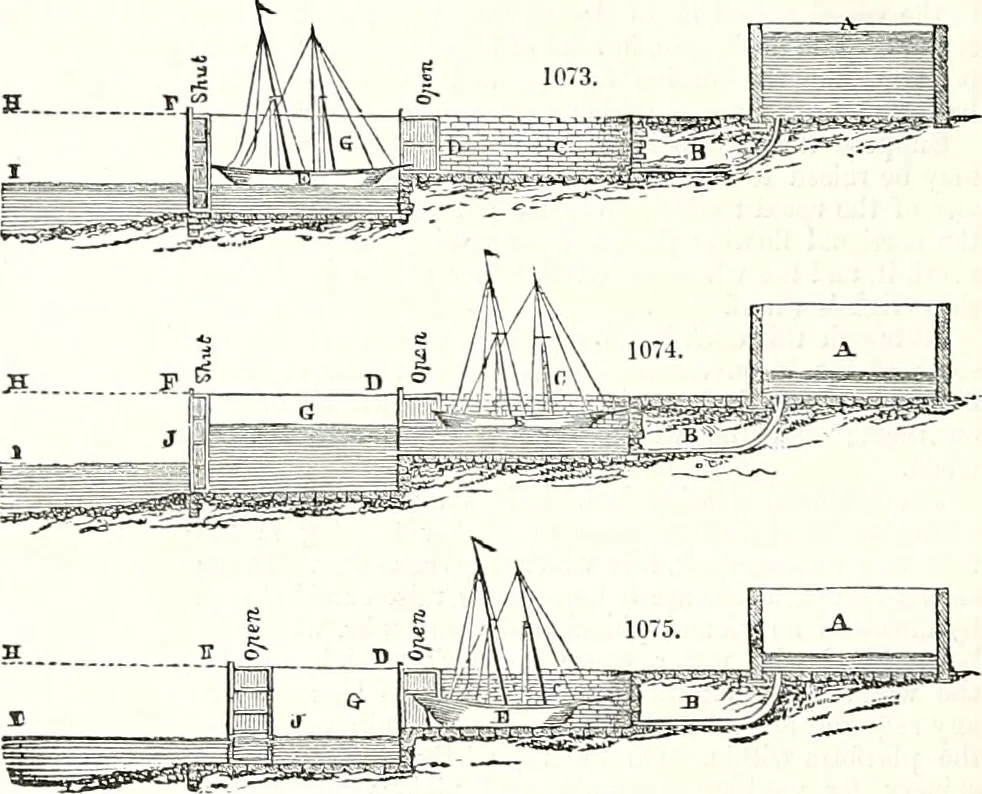

on roller. Thenumber of spuds is twenty-eight, four on each section, or two for each tank. On the end sections themachinery consists merely of the longitudinal shaft, the thrusting and pumping geer. The process of taking a ship into the sectional floating-dock is as flollows:—The dock is sunk to… … DOCKING SHIPS. 581 vertical side-framing, rests on the keel blocks, and when supported on the sides by the chock-blocks andside-supports is ready for lifting. The valves which have previously admitted the water into the water-tanks are now closed, the wateris pumped out. and the air again tills the…
Mechanical engineering · Mechanics · Engineering
Internet Archive · Public Domain Mark 1.0. Free to use for anything.
