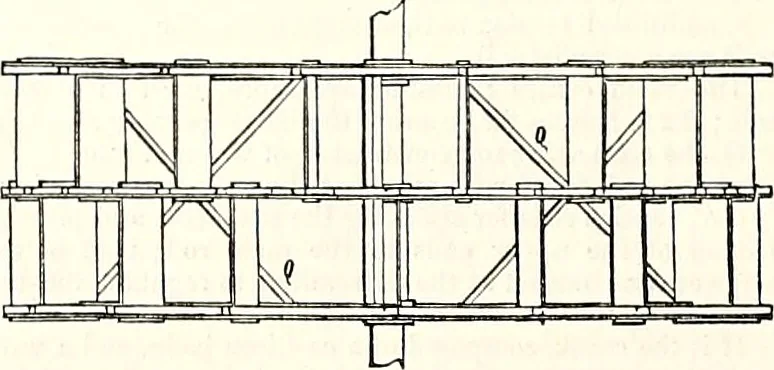

incipal dimensions of the Osceola are these:— Diameter of cylinder 31 inches. hength of stroke 11 feet Length of beam 17 9 Length of connecting-rod 21 1 Lengths of links 7 6 Height of beam, from keelson 31 0 Width between guides of piston-rod 3 64 Diameter of paddle-wheel 28 0 Number of strokes per… … ENGINE, VARIETIES OF THE STEAM. 581 Fig. 1528 shows the outside framing of the paddle-box, or, as it is frequently termed, the wheel-house ; also an elevation of the paddle-wheel, showing the arrangement of the buckets, arms, centre-plate, <£c.; A A is the main waling which rests upon the…
