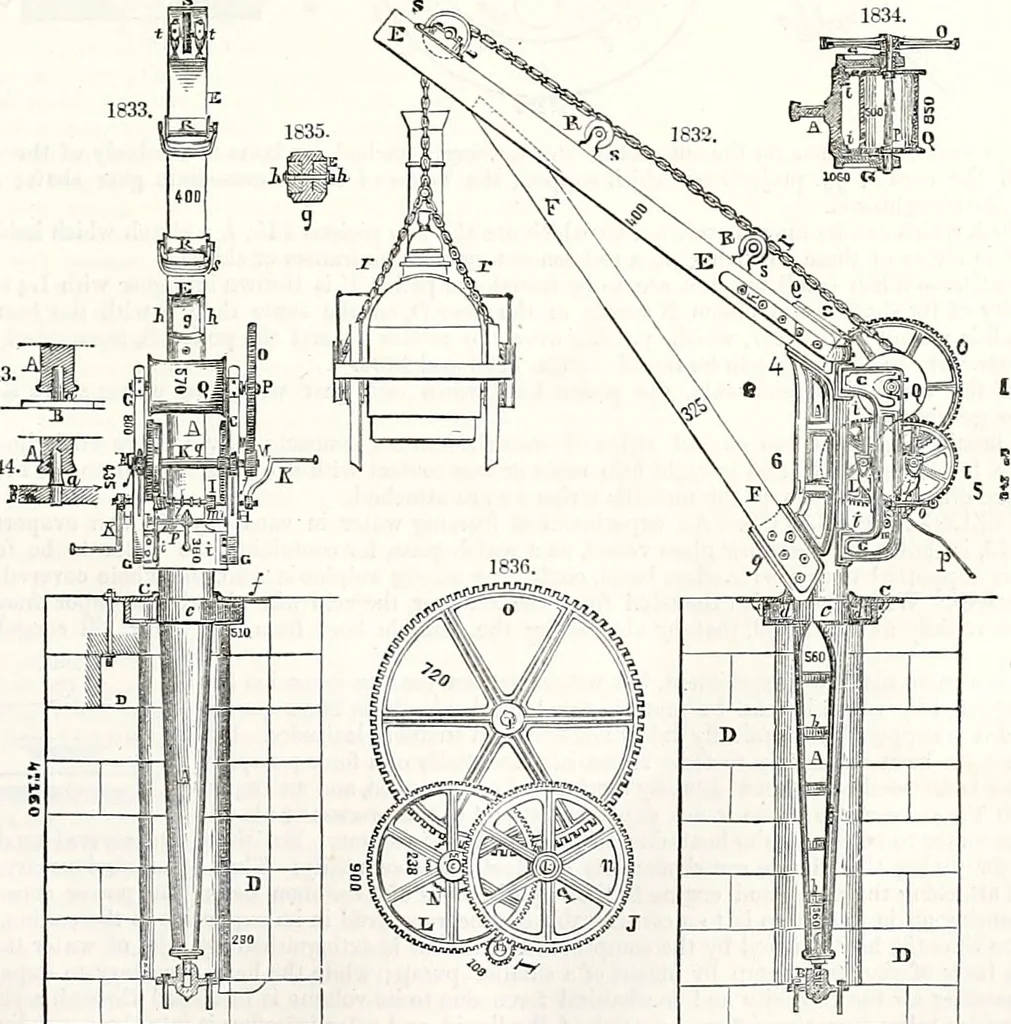

piles resting on the b6ton, and puddling betweenthe two rows in the usual manner; and the masonry is carried up on the beton foundation thus pre-pared. This construction is shown in Fig. 1831. See Dry Dock.- FOUNDRY See Casting. FOUNDRY CRANE. Fig. 1832.—Side elevation of the crane, and section of… … Scale.—17 feet=4 inches. Fig. 1836.—Elevation of geers and pinions. Fig. 1837.—Shows the arrangement of the break; Fig. 183S.—A section of the same.Figs. 1839 and 1840.—Horizontal section on the line 5-6 ; Fig. 1S39 being the section of the framewhich supports the geering; Fig. 1840, the section of…
