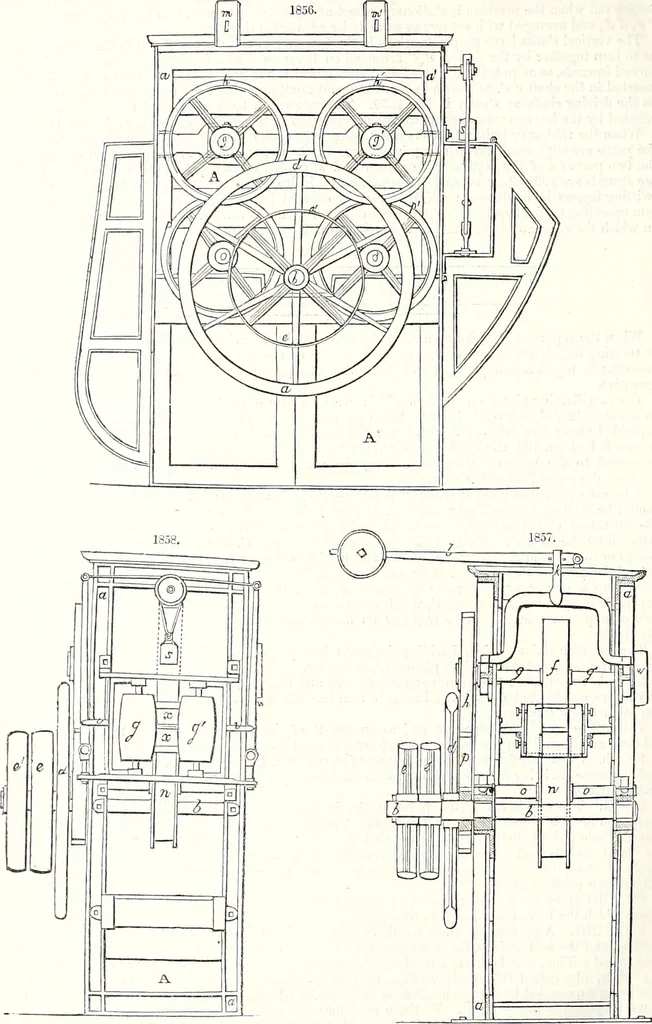

726 FULLING. perceived that the machine is composed of four cylinders n nff running horizontally, arranged in pairsone above the other, and two vertical cylinders gg. Both horizontal and vertical cylinders are sub-jected to pressure: to the former it is applied by means of the weight movable on the… … iever U, which forces down the yoke k on the boxes of the cylinder. The pressure is applied to thevertical cylinders by the variable weight s, through the levers w. In both cases the pressure to be exerted can be varied at pleasure. FULLING. 727
