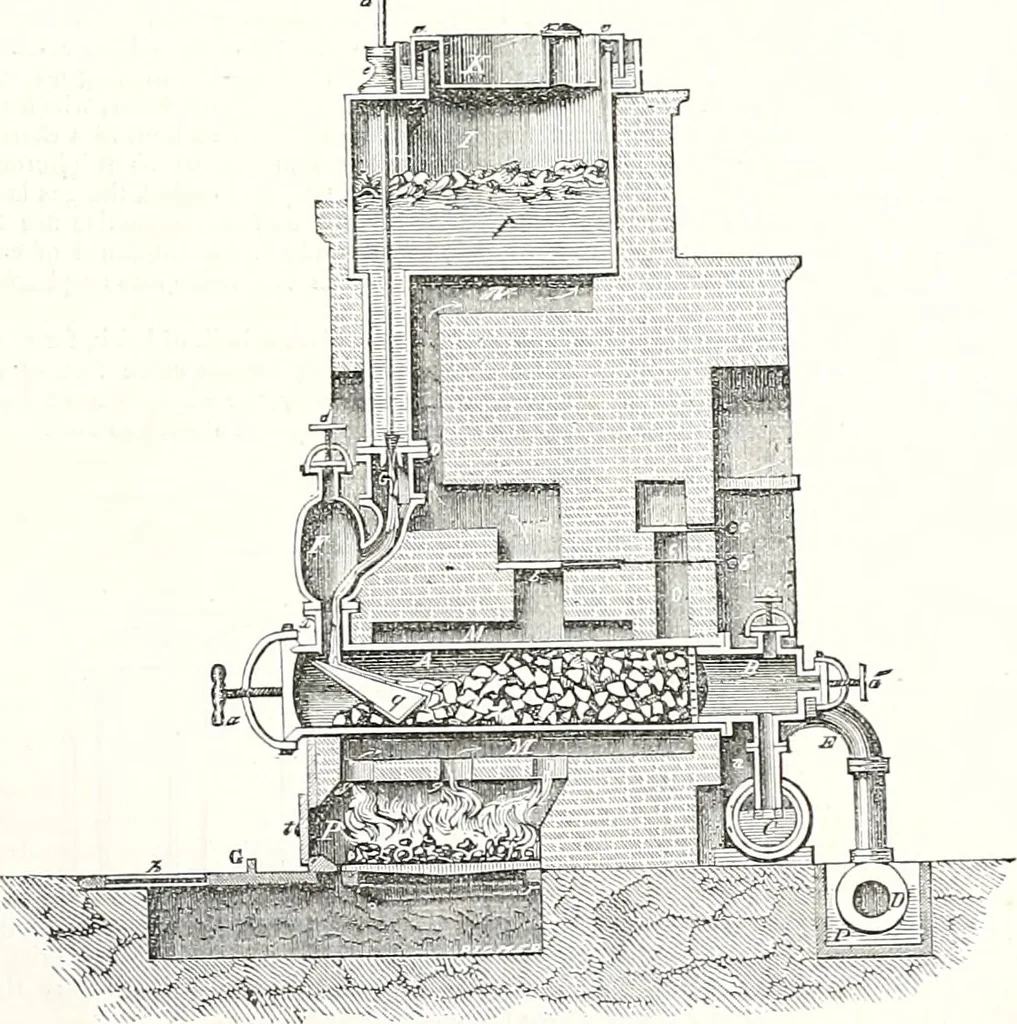

atthe bottom/need be apprehended. Combustible gases are generated by merely melting the resin,which may possibly endanger the whole apparatus. To avoid such contingencies, the edge of I is fur-nished with a groove filled with water u u, into which the lid K dips at v v, and is consequently… … G and H is a plate o, with a funnel-shaped aperture in the middle, in which the conical end of the rodd is movable. If this is raised through the stuffing-box e, the retort A receives a larger flow of meltedresin; if it is pushed down the stream diminishes, or the flow ceases entirely. The resin…
