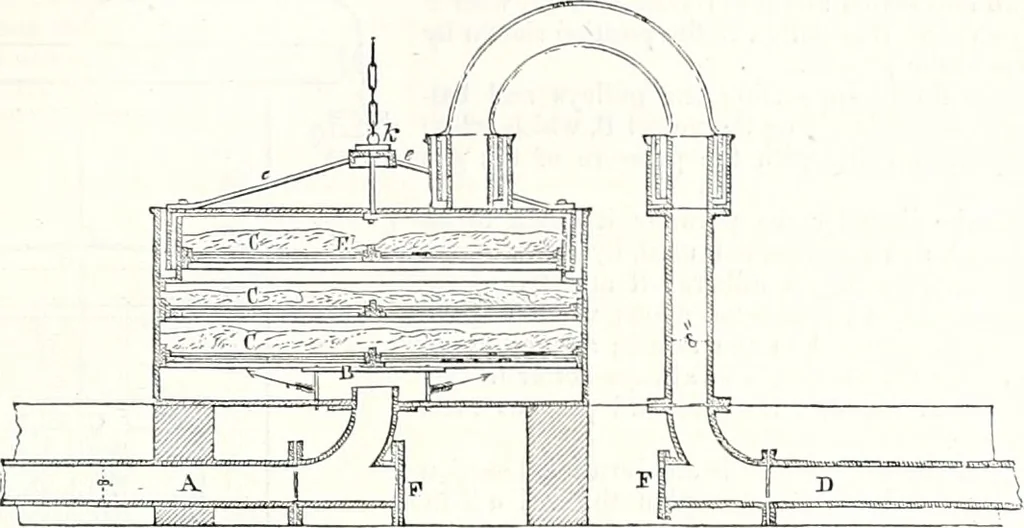

pe must be removed,and any other kind of joint would be troublesome. E is the lid of the purifier, also sealed by a water-joint; e e are round 5-8ths rods, keyed at one endinto the keep-ring k, and riveted to each corner of the lid at the other; a chain is hooked on to the ringk, anil passed over a… … G G are clamps, to keep the lid of the purifier in its place. A is the pipe leading from the wash-vessel into one partition of the hydraulic valve, which shall bedescribed immediately. B is the pipe leading to the three purifiers C D E in action, and rising into the same partition of thevalve as B.…
