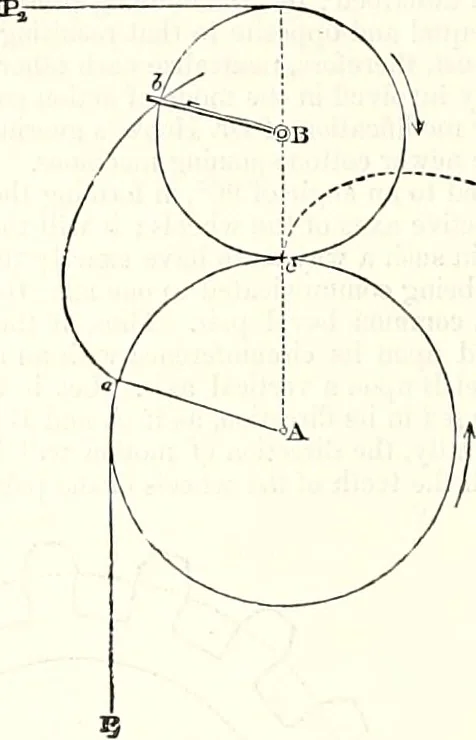

nthe same time. II. To find the radius of the pinion or other wheel, multiply the distance between the centres by thenumber expressing the velocity of the wheel, and divide the result by the sum of the velocities; or sub-tract the radius of the wheel from the distance between the centres: the… … 6 feet X 3__18 feet 2 + 3 ~~56 feet X 2_12 feet 2 + 3 5Sum of radii d = R = 3 feet 71 inches. = 2 feet 4| inches.: 6 feet. Having the radii or diameters of the wheels given, it is not necessary to find their circumferences morder to determine the ratio of the velocities of their axes. The relative…
