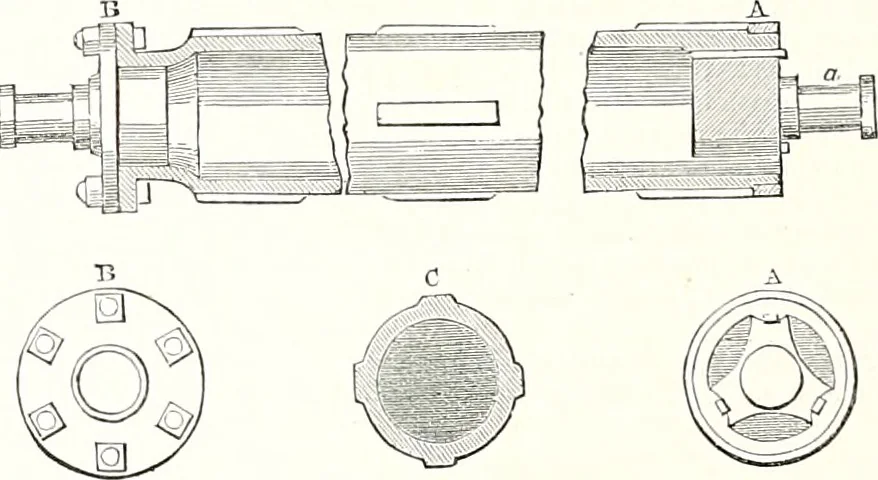

t in ordinary water-wheels the axles are formed of cast-iron, usually hollow, with independent gud-geons fitted into their extremities ; and when made of wood, the gudgeons must of necessity be inserted. The drawings in Fig. 20S3 show the general form of a hollow cast-iron axle for a water-wheel,… … internally to a distance equal to the interior diameter, and three ribs cast in it have key-seats cut intheir faces. The gudgeon marked a has three arms cast or forged upon it, (according as it is made oicast or wrought iron,) of the same length as the ribs on the interior of the shaft; and these…
