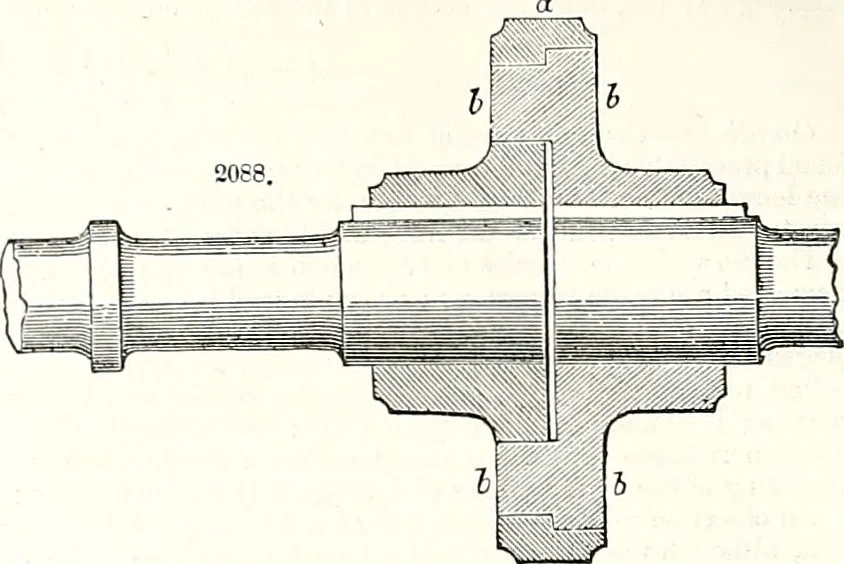

The coupling shown in figs. 2088 and 2089 is constructed of two cast-iron plates, a a and J b, keyedone on the end°of each of the shafts. The plate a is formed with two segmental openings in it, which«ill be better understood from fig. 2089 atcc; these openings are intended to receive corresponding… … projections on the face of the plate b, as represented in the section; and thus the shafts becomeengaged. The rim of the plate a over-laps and embraces the circumferenceof the other plate, and thus they arepreserved exactly concentric. This coupling, applicable to shaftswith two bearings, one on…
